A simple container of DataPoint instances. More...

#include <trace.h>

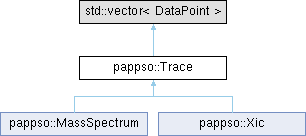

Inheritance diagram for pappso::Trace:

Public Member Functions
	Trace ()

	Trace (const QString &text)

	Trace (const std::vector< pappso_double > &xVector, const std::vector< pappso_double > &yVector)

	Trace (const std::vector< std::pair< pappso_double, pappso_double > > &dataPoints)

	Trace (const std::vector< DataPoint > &dataPoints)

	Trace (const std::vector< DataPoint > &&dataPoints)

	Trace (const MapTrace &map_trace)

	Trace (const Trace &other)

	Trace (const Trace &&other)

virtual	~Trace ()

size_t	initialize (const std::vector< pappso_double > &xVector, const std::vector< pappso_double > &yVector)

size_t	initialize (const QString &x_text, const QString &y_text)

size_t	initialize (const QString &space_sep_text)

size_t	initialize (const Trace &other)

size_t	initialize (const std::map< pappso_double, pappso_double > &map)

virtual Trace &	operator= (const Trace &x)

virtual Trace &	operator= (Trace &&x)

TraceSPtr	makeTraceSPtr () const

TraceCstSPtr	makeTraceCstSPtr () const

size_t	append (const DataPoint &data_point)
	appends a datapoint and return new size

std::vector< pappso_double >	xValues () const

std::vector< pappso_double >	yValues () const

std::map< pappso_double, pappso_double >	toMap () const

DataPoint	containsX (pappso_double value, PrecisionPtr precision_p=nullptr) const

const DataPoint &	minXDataPoint () const

const DataPoint &	maxXDataPoint () const

const DataPoint &	minYDataPoint () const

const DataPoint &	maxYDataPoint () const

pappso_double	minX () const

pappso_double	maxX () const

pappso_double	minY () const

pappso_double	maxY () const

pappso_double	maxY (double mzStart, double mzEnd) const

pappso_double	sumY () const

pappso_double	sumY (double mzStart, double mzEnd) const

void	sort (Enums::SortType sort_type, Enums::SortOrder sort_order=Enums::SortOrder::ascending)

void	sortX (Enums::SortOrder sort_order=Enums::SortOrder::ascending)

void	sortY (Enums::SortOrder sort_order=Enums::SortOrder::ascending)

void	unique ()

std::size_t	removeZeroYDataPoints ()

virtual Trace &	filter (const FilterInterface &filter) final
	apply a filter on this trace

QString	toString () const

QByteArray	xAsBase64Encoded () const

QByteArray	yAsBase64Encoded () const

std::vector< DataPoint >::const_iterator	dataPointCstIteratorWithX (pappso_double value) const
	find datapoint with exactly x value

Protected Member Functions
std::size_t	dataPointIndexWithX (pappso_double value) const

std::vector< DataPoint >::iterator	dataPointIteratorWithX (pappso_double value)

Friends
class	TraceCombiner

class	TraceMinusCombiner

class	TracePlusCombiner

class	MassSpectrumCombinerInterface

Detailed Description

A simple container of DataPoint instances.

Definition at line 147 of file trace.h.

Constructor & Destructor Documentation

◆ Trace() [1/9]

pappso::Trace::Trace ( )

Definition at line 422 of file trace.cpp.

423{

424}

Referenced by pappso::MassSpectrum::MassSpectrum(), pappso::MassSpectrum::MassSpectrum(), pappso::MassSpectrum::MassSpectrum(), pappso::MassSpectrum::MassSpectrum(), pappso::MassSpectrum::MassSpectrum(), pappso::MassSpectrum::MassSpectrum(), pappso::MassSpectrum::MassSpectrum(), Trace(), Trace(), pappso::Xic::Xic(), initialize(), MassSpectrumCombinerInterface, operator=(), and operator=().

◆ Trace() [2/9]

pappso::Trace::Trace ( const QString & text )

Definition at line 427 of file trace.cpp.

{
  initialize(text);
}

References initialize().

◆ Trace() [3/9]

pappso::Trace::Trace	(	const std::vector< pappso_double > &	xVector,
		const std::vector< pappso_double > &	yVector )

Definition at line 433 of file trace.cpp.

{
  initialize(xVector, yVector);
}

References initialize().

◆ Trace() [4/9]

pappso::Trace::Trace ( const std::vector< std::pair< pappso_double, pappso_double > > & dataPoints )

Definition at line 500 of file trace.cpp.

{
  reserve(dataPoints.size());

  for(auto &dataPoint : dataPoints)
    {
      push_back(DataPoint(dataPoint));
    }

  sortX();
  // std::sort(begin(), end(), [](const DataPoint &a, const DataPoint &b) {
  // return (a.x < b.x);
  //});
}

References sortX().

◆ Trace() [5/9]

pappso::Trace::Trace ( const std::vector< DataPoint > & dataPoints )

Definition at line 516 of file trace.cpp.

                                                   : std::vector<DataPoint>(dataPoints)
{
  sortX();
  // std::sort(begin(), end(), [](const DataPoint &a, const DataPoint &b) {
  // return (a.x < b.x);
  //});
}

References sortX().

◆ Trace() [6/9]

pappso::Trace::Trace ( const std::vector< DataPoint > && dataPoints )

Definition at line 525 of file trace.cpp.

  : std::vector<DataPoint>(std::move(dataPoints))
{
  // This constructor used by the MassSpectrum && constructor.

  sortX();
  // std::sort(begin(), end(), [](const DataPoint &a, const DataPoint &b) {
  // return (a.x < b.x);
  //});
}

References sortX().

◆ Trace() [7/9]

pappso::Trace::Trace ( const MapTrace & map_trace )

explicit

Definition at line 537 of file trace.cpp.

{
  for(auto &&item : map_trace)
    push_back(DataPoint(item.first, item.second));

  // No need to sort, maps are sorted by key (that is, x).
}

◆ Trace() [8/9]

pappso::Trace::Trace ( const Trace & other )

Definition at line 545 of file trace.cpp.

                               : std::vector<DataPoint>(other)
{
}

References Trace().

◆ Trace() [9/9]

pappso::Trace::Trace ( const Trace && other )

Definition at line 550 of file trace.cpp.

                                : std::vector<DataPoint>(std::move(other))
{
  // This constructor used by the MassSpectrum && constructor.
}

References Trace().

◆ ~Trace()

pappso::Trace::~Trace ( )

virtual

Definition at line 556 of file trace.cpp.

{
  // Calls the destructor for each DataPoint object in the vector.
  clear();
}

Member Function Documentation

◆ append()

size_t pappso::Trace::append ( const DataPoint & data_point )

appends a datapoint and return new size

Definition at line 623 of file trace.cpp.

{
  push_back(data_point);

  return size();
}

Referenced by pappso::TimsFramesMsRunReader::computeTicChromatogram(), initialize(), initialize(), and MassSpectrumCombinerInterface.

◆ containsX()

DataPoint pappso::Trace::containsX	(	pappso_double	value,
		PrecisionPtr	precision_p = nullptr ) const

Definition at line 768 of file trace.cpp.

{
  // std::cout << std::setprecision(10) << "getting value: " << value
  //<< " and precision: " << precision_p->getNominal() << std::endl;

  pappso_double delta = precision_p->delta(value);

  double left_most  = value - delta;
  double right_most = value + delta;

  // std::cout << std::setprecision(10) << "delta: " << delta
  //<< " left_most: " << left_most << " right_most: " << right_most
  //<< std::endl;

  auto iterator =
    std::find_if(begin(),
                 end(),
                 [value, precision_p, delta, left_most, right_most](const DataPoint &data_point) {
                   if(precision_p)
                     {

                       // FIXME: unbelievable behaviour: when building in
                       // release mode this code, under i386 (but not x86_64),
                       // this code fails if the following%S statement is
                       // missing.

                       // std::cout << std::setprecision(10)
                       //<< "Testing data_point.x: " << data_point.x
                       //<< std::endl;

                       // For this reason I had to deactivate the related tests
                       // for i386 in tests/test_trace.cpp

                       double diff_to_left_most  = data_point.x - left_most;
                       double diff_to_right_most = data_point.x - right_most;

                       // std::cout << std::setprecision(10)
                       //<< "diff_to_left_most: " << diff_to_left_most
                       //<< " diff_to_right_most: " << diff_to_right_most <<
                       // std::endl;

                       // if(diff_to_left_most > 0)
                       //{
                       // std::cout << std::setprecision(10)
                       //<< " point is right of left_most: " <<
                       // diff_to_left_most
                       //<< std::endl;
                       //}
                       // if(diff_to_left_most < 0)
                       //{
                       // std::cout << std::setprecision(10)
                       //<< "point is left of left_most: " << diff_to_left_most
                       //<< std::endl;
                       //}
                       // if(!diff_to_left_most)
                       //{
                       // std::cout << std::setprecision(10)
                       //<< "point is spot on left_most: " << diff_to_left_most
                       //<< std::endl;
                       //}

                       // if(diff_to_right_most > 0)
                       //{
                       // std::cout << std::setprecision(10)
                       //<< "point is right of right_most: " <<
                       // diff_to_right_most
                       //<< std::endl;
                       //}
                       // if(diff_to_right_most < 0)
                       //{
                       // std::cout << std::setprecision(10)
                       //<< "point is left or of right_most: "
                       //<< diff_to_right_most << std::endl;
                       //}
                       // if(!diff_to_right_most)
                       //{
                       // std::cout << std::setprecision(10)
                       //<< "point is spot on right_most: " <<
                       // diff_to_right_most
                       //<< std::endl;
                       //}

                       if(diff_to_left_most >= 0 && diff_to_right_most <= 0)
                         {
                           // std::cout << "The point is inside the range,
                           // should return true."
                           //<< std::endl;
                           return true;
                         }
                       else
                         {
                           // std::cout
                           //<< "The point is outside the range, should return
                           // false."
                           //<< std::endl;
                           return false;
                         }
                     }
                   else
                     {
                       return (data_point.x == value);
                     }
                 });

  if(iterator != end())
    {
      // The returned data point is valid.
      return *iterator;
    }
  else
    {
      // The returned data point is invalid because it is not initialized.
      return DataPoint();
    }
}

References pappso::PrecisionBase::delta(), and pappso::DataPoint::x.

Referenced by MassSpectrumCombinerInterface.

◆ dataPointCstIteratorWithX()

std::vector< DataPoint >::const_iterator pappso::Trace::dataPointCstIteratorWithX ( pappso_double value ) const

find datapoint with exactly x value

Definition at line 746 of file trace.cpp.

{
  auto iterator = std::find_if(
    begin(), end(), [value](const DataPoint &dataPoint) { return (dataPoint.x == value); });

  return iterator;
}

References pappso::DataPoint::x.

Referenced by dataPointIndexWithX(), and MassSpectrumCombinerInterface.

◆ dataPointIndexWithX()

std::size_t pappso::Trace::dataPointIndexWithX ( pappso_double value ) const

protected

Return a reference to the DataPoint instance that has its x member equal to value.

Definition at line 756 of file trace.cpp.

{
  std::vector<DataPoint>::const_iterator iterator = dataPointCstIteratorWithX(value);

  if(iterator != end())
    return std::distance(begin(), iterator);

  return std::numeric_limits<std::size_t>::max();
}

References dataPointCstIteratorWithX().

Referenced by MassSpectrumCombinerInterface.

◆ dataPointIteratorWithX()

std::vector< DataPoint >::iterator pappso::Trace::dataPointIteratorWithX ( pappso_double value )

protected

Definition at line 736 of file trace.cpp.

{
  auto iterator = std::find_if(
    begin(), end(), [value](const DataPoint &dataPoint) { return (dataPoint.x == value); });

  return iterator;
}

References pappso::DataPoint::x.

Referenced by MassSpectrumCombinerInterface.

◆ filter()

Trace & pappso::Trace::filter ( const FilterInterface & filter )

finalvirtual

apply a filter on this trace

Parameters

filter to process the signal

Returns: reference on the modified Trace

Definition at line 1153 of file trace.cpp.

{
  return filter.filter(*this);
}

References filter().

Referenced by filter(), MassSpectrumCombinerInterface, and pappso::MassSpectrum::massSpectrumFilter().

◆ initialize() [1/5]

size_t pappso::Trace::initialize ( const QString & space_sep_text )

Definition at line 440 of file trace.cpp.

{
  QStringList string_list = space_sep_text.split("\n", Qt::SkipEmptyParts);

  // qDebug() << "Split text into" << string_list.size()
  //<< "substrings:" << string_list;

  for(int iter = 0; iter < string_list.size(); ++iter)
    {
      QString line = string_list.at(iter);
      // qDebug() << "Now processing line:" << line;

      // Returns a string that has whitespace removed from the start and the
      // end, and that has each sequence of internal whitespace replaced with a
      // single space.
      line = line.simplified();

      // Remove any parentheses and replace comma and semicolumn with space.
      // line.remove(QChar('('));
      // line.remove(QChar(')'));

      // line.replace(QChar(','), QChar(' '));
      // line.replace(QChar(';'), QChar(' '));

      qDebug() << "Now appending DataPoint as this line:" << line;
      append(DataPoint(line));
    }

  return size();
}

References append(), and line.

◆ initialize() [2/5]

size_t pappso::Trace::initialize	(	const QString &	x_text,
		const QString &	y_text )

Definition at line 473 of file trace.cpp.

{
  QStringList x_string_list = x_text.split("\n", Qt::SkipEmptyParts);
  QStringList y_string_list = y_text.split("\n", Qt::SkipEmptyParts);

  if(x_string_list.size() != y_string_list.size())
    throw ExceptionNotPossible(
      "trace.cpp -- ERROR x_text and y_text must have the same number of "
      "lines.");

  for(int iter = 0; iter < x_string_list.size(); ++iter)
    {
      QString x_line = x_string_list.at(iter);
      QString y_line = y_string_list.at(iter);

      // Returns a string that has whitespace removed from the start and the
      // end, and that has each sequence of internal whitespace replaced with a
      // single space.
      x_line = x_line.simplified();
      y_line = y_line.simplified();

      append(DataPoint(x_line + " " + y_line));
    }
  return size();
}

References append().

◆ initialize() [3/5]

size_t pappso::Trace::initialize ( const std::map< pappso_double, pappso_double > & map )

Definition at line 596 of file trace.cpp.

{

  // We are initializing, not appending.
  erase(begin(), end());

  for(auto &&item : map)
    {
      push_back(DataPoint(item.first, item.second));
    }

  // No need to sort, maps are sorted by key (that is, x).

  return size();
}

◆ initialize() [4/5]

size_t pappso::Trace::initialize	(	const std::vector< pappso_double > &	xVector,
		const std::vector< pappso_double > &	yVector )

Definition at line 564 of file trace.cpp.

{
  // Sanity check
  if(xVector.size() != yVector.size())
    throw ExceptionNotPossible("trace.cpp -- ERROR xVector and yVector must have the same size.");

  // We are initializing, not appending.
  erase(begin(), end());

  for(std::size_t iter = 0; iter < xVector.size(); ++iter)
    {
      push_back(DataPoint(xVector.at(iter), yVector.at(iter)));
    }

  sortX();
  // std::sort(begin(), end(), [](const DataPoint &a, const DataPoint &b) {
  // return (a.x < b.x);
  //});

#if 0
  for(auto &item : *this)
  {
    std::cout << item.x << "-" << item.y;
  }
#endif

  return size();
}

References sortX().

Referenced by Trace(), Trace(), and MassSpectrumCombinerInterface.

◆ initialize() [5/5]

size_t pappso::Trace::initialize ( const Trace & other )

Definition at line 614 of file trace.cpp.

{
  *this = other;

  return size();
}

References Trace().

◆ makeTraceCstSPtr()

TraceCstSPtr pappso::Trace::makeTraceCstSPtr ( ) const

Definition at line 656 of file trace.cpp.

{
  return std::make_shared<const Trace>(*this);
}

Referenced by MassSpectrumCombinerInterface.

◆ makeTraceSPtr()

TraceSPtr pappso::Trace::makeTraceSPtr ( ) const

Definition at line 649 of file trace.cpp.

{
  return std::make_shared<Trace>(*this);
}

Referenced by pappso::TimsFrameMobilityTraces::extractMobilityTraces(), and MassSpectrumCombinerInterface.

◆ maxX()

pappso_double pappso::Trace::maxX ( ) const

Definition at line 957 of file trace.cpp.

{
  return maxXDataPoint().x;
}

References maxXDataPoint(), and pappso::DataPoint::x.

Referenced by MassSpectrumCombinerInterface.

◆ maxXDataPoint()

const DataPoint & pappso::Trace::maxXDataPoint ( ) const

Definition at line 902 of file trace.cpp.

{
  auto dataPoint = std::max_element(
    begin(), end(), [](const DataPoint &a, const DataPoint &b) { return (a.x < b.x); });

  if(dataPoint == end())
    {
      throw ExceptionOutOfRange(
        QObject::tr("unable to get max peak x on spectrum size %1").arg(size()));
    }

  return (*dataPoint);
}

References pappso::a, and pappso::b.

Referenced by MassSpectrumCombinerInterface, and maxX().

◆ maxY() [1/2]

pappso_double pappso::Trace::maxY ( ) const

Definition at line 971 of file trace.cpp.

{
  return maxYDataPoint().y;
}

References maxYDataPoint(), and pappso::DataPoint::y.

Referenced by MassSpectrumCombinerInterface.

◆ maxY() [2/2]

pappso_double pappso::Trace::maxY	(	double	mzStart,
		double	mzEnd ) const

Definition at line 1008 of file trace.cpp.

{
  std::vector<DataPoint>::const_iterator begin_it =
    findFirstEqualOrGreaterX(this->begin(), this->end(), mzStart);

  double max_y = 0;

  while(begin_it != findFirstGreaterX(begin_it, this->end(), mzEnd))
    {
      if(begin_it->y > max_y)
        max_y = begin_it->y;
      begin_it++;
    }
  return max_y;
}

References pappso::findFirstEqualOrGreaterX(), and pappso::findFirstGreaterX().

◆ maxYDataPoint()

const DataPoint & pappso::Trace::maxYDataPoint ( ) const

Definition at line 934 of file trace.cpp.

{
  auto dataPoint = std::max_element(
    begin(), end(), [](const DataPoint &a, const DataPoint &b) { return (a.y < b.y); });

  if(dataPoint == end())
    {
      throw ExceptionOutOfRange(
        QObject::tr("unable to get max peak intensity on spectrum size %1").arg(size()));
    }

  return (*dataPoint);
}

References pappso::a, and pappso::b.

Referenced by pappso::flooredLocalMaxima(), MassSpectrumCombinerInterface, pappso::MassSpectrum::maxIntensityDataPoint(), and maxY().

◆ minX()

pappso_double pappso::Trace::minX ( ) const

Definition at line 950 of file trace.cpp.

{
  return minXDataPoint().x;
}

References minXDataPoint(), and pappso::DataPoint::x.

Referenced by MassSpectrumCombinerInterface.

◆ minXDataPoint()

const DataPoint & pappso::Trace::minXDataPoint ( ) const

Definition at line 886 of file trace.cpp.

{
  auto dataPoint = std::min_element(
    begin(), end(), [](const DataPoint &a, const DataPoint &b) { return (a.x < b.x); });

  if(dataPoint == end())
    {
      throw ExceptionOutOfRange(
        QObject::tr("unable to get min peak x on spectrum size %1").arg(size()));
    }

  return (*dataPoint);
}

References pappso::a, and pappso::b.

Referenced by MassSpectrumCombinerInterface, and minX().

◆ minY()

pappso_double pappso::Trace::minY ( ) const

Definition at line 964 of file trace.cpp.

{
  return minYDataPoint().y;
}

References minYDataPoint(), and pappso::DataPoint::y.

Referenced by MassSpectrumCombinerInterface.

◆ minYDataPoint()

const DataPoint & pappso::Trace::minYDataPoint ( ) const

Definition at line 918 of file trace.cpp.

{
  auto dataPoint = std::min_element(
    begin(), end(), [](const DataPoint &a, const DataPoint &b) { return (a.y < b.y); });

  if(dataPoint == end())
    {
      throw ExceptionOutOfRange(
        QObject::tr("unable to get min peak intensity on spectrum size %1").arg(size()));
    }

  return (*dataPoint);
}

References pappso::a, and pappso::b.

Referenced by MassSpectrumCombinerInterface, pappso::MassSpectrum::minIntensityDataPoint(), and minY().

◆ operator=() [1/2]

Trace & pappso::Trace::operator= ( const Trace & x )

virtual

Reimplemented in pappso::MassSpectrum, and pappso::Xic.

Definition at line 632 of file trace.cpp.

{
  assign(other.begin(), other.end());

  return *this;
}

References Trace().

Referenced by MassSpectrumCombinerInterface.

◆ operator=() [2/2]

Trace & pappso::Trace::operator= ( Trace && x )

virtual

Reimplemented in pappso::MassSpectrum, and pappso::Xic.

Definition at line 641 of file trace.cpp.

{
  vector<DataPoint>::operator=(std::move(other));
  return *this;
}

References Trace().

◆ removeZeroYDataPoints()

std::size_t pappso::Trace::removeZeroYDataPoints ( )

Definition at line 1069 of file trace.cpp.

{
  qDebug();

  auto it     = begin();
  auto end_it = end();

  std::size_t count = 0;

  while(it != end_it)
    {
      if(Utils::almostEqual(it->y, 0))
        {
          // erase returns an iterator to the next item in the vector.
          it = erase(it);
          ++count;
        }
      else
        // We need to increment (no call to erase here).
        ++it;
    }

  return count;
}

References pappso::Utils::almostEqual().

Referenced by MassSpectrumCombinerInterface.

◆ sort()

void pappso::Trace::sort	(	Enums::SortType	sort_type,
		Enums::SortOrder	sort_order = Enums::SortOrder::ascending )

Definition at line 1026 of file trace.cpp.

{
  if(sort_type == Enums::SortType::none)
    return;

  if(sort_type == Enums::SortType::x)
    return sortX(sort_order);
  else
    return sortY(sort_order);
}

References pappso::Enums::none, sortX(), sortY(), and pappso::Enums::x.

Referenced by MassSpectrumCombinerInterface.

◆ sortX()

void pappso::Trace::sortX ( Enums::SortOrder sort_order = Enums::SortOrder::ascending )

Definition at line 1039 of file trace.cpp.

{
  if(sort_order == Enums::SortOrder::ascending)
    std::sort(begin(), end(), [](const DataPoint &a, const DataPoint &b) { return (a.x < b.x); });
  else
    std::sort(begin(), end(), [](const DataPoint &a, const DataPoint &b) { return (a.x > b.x); });
}

References pappso::a, pappso::Enums::ascending, and pappso::b.

Referenced by pappso::IonIsotopeRatioScore::IonIsotopeRatioScore(), Trace(), Trace(), Trace(), pappso::MsRunRetentionTime< T >::align(), pappso::TimsFrame::cumulateScansToTrace(), pappso::FilterChargeDeconvolution::filter(), pappso::FilterComplementIonEnhancer::filter(), pappso::FilterGreatestYperWindow::filter(), pappso::FilterMzExclusion::filter(), pappso::FilterPeakDelta::filter(), pappso::FilterRemoveC13::filter(), pappso::FilterTriangle::filter(), pappso::MsRunRetentionTime< T >::getCommonDeltaRt(), pappso::PsmFeatures::getIonIsotopeLinearRegression(), pappso::TimsFrameBase::getTraceFromTofIndexIntensityMap(), initialize(), MassSpectrumCombinerInterface, sort(), pappso::Xic::sortByRetentionTime(), and pappso::MassSpectrum::sortMz().

◆ sortY()

void pappso::Trace::sortY ( Enums::SortOrder sort_order = Enums::SortOrder::ascending )

Definition at line 1049 of file trace.cpp.

{
  if(sort_order == Enums::SortOrder::ascending)
    std::sort(begin(), end(), [](const DataPoint &a, const DataPoint &b) { return (a.y < b.y); });
  else
    std::sort(begin(), end(), [](const DataPoint &a, const DataPoint &b) { return (a.y > b.y); });
}

References pappso::a, pappso::Enums::ascending, and pappso::b.

Referenced by pappso::TimsFrameMobilityTraces::extractMobilityTraces(), pappso::FilterChargeDeconvolution::filter(), pappso::FilterMzExclusion::filter(), MassSpectrumCombinerInterface, and sort().

◆ sumY() [1/2]

pappso_double pappso::Trace::sumY ( ) const

Definition at line 978 of file trace.cpp.

{
  // double sum = 0;

  // for(auto &&dp : m_dataPoints)
  // sum += dp.y;

  // qDebug() << __FILE__ << "@" << __LINE__ << __FUNCTION__ << " ()"
  //<< "Returning sum/tic:" << sum;

  // return sum;

  return std::accumulate(
    begin(), end(), (double)0, [](pappso_double sum, const DataPoint &dataPoint) {
      return (sum + dataPoint.y);
    });
}

References pappso::DataPoint::y.

Referenced by MassSpectrumCombinerInterface, pappso::PsmFeatures::setPeptideSpectrumCharge(), pappso::MassSpectrum::tic(), and pappso::MassSpectrum::totalIonCurrent().

◆ sumY() [2/2]

pappso_double pappso::Trace::sumY	(	double	mzStart,
		double	mzEnd ) const

Definition at line 998 of file trace.cpp.

{
  auto begin_it = findFirstEqualOrGreaterX(this->begin(), this->end(), mzStart);
  auto end_it   = findFirstGreaterX(begin_it, this->end(), mzEnd);

  return sumYTrace(begin_it, end_it, 0);
}

References pappso::findFirstEqualOrGreaterX(), pappso::findFirstGreaterX(), and pappso::sumYTrace().

◆ toMap()

std::map< pappso_double, pappso_double > pappso::Trace::toMap ( ) const

Definition at line 691 of file trace.cpp.

{
  std::map<pappso_double, pappso_double> map;

  std::pair<std::map<pappso_double, pappso_double>::iterator, bool> ret;

  for(auto &&dataPoint : *this)
    {
      ret = map.insert(std::pair<pappso_double, pappso_double>(dataPoint.x, dataPoint.y));

      if(ret.second == false)
        {
          qDebug() << "It is odd that the Trace contains multiple same keys.";

          // No insertion, then increment the y value.
          ret.first->second += dataPoint.y;
        }
    }

  return map;
}

Referenced by MassSpectrumCombinerInterface.

◆ toString()

QString pappso::Trace::toString ( ) const

Definition at line 1096 of file trace.cpp.

{
  // Even if the spectrum is empty, we should return an empty string.
  QString text;

  for(auto &&dataPoint : *this)
    {
      text.append(QString("%1\n").arg(dataPoint.toString()));
    }

  return text;
}

Referenced by MassSpectrumCombinerInterface.

◆ unique()

void pappso::Trace::unique ( )

Definition at line 1059 of file trace.cpp.

{
  auto last = std::unique(
    begin(), end(), [](const DataPoint &a, const DataPoint &b) { return (a.x == b.x); });

  erase(last, end());
}

References pappso::a, pappso::b, and pappso::last.

Referenced by pappso::MsRunRetentionTime< T >::getCommonDeltaRt(), and MassSpectrumCombinerInterface.

◆ xAsBase64Encoded()

QByteArray pappso::Trace::xAsBase64Encoded ( ) const

Definition at line 1111 of file trace.cpp.

{
  QByteArray unencoded_array;

  for(auto &&data_point : *this)
    {
      QByteArray local_array;
      local_array.setNum(data_point.x, 'f', 12);
      local_array.append("\n");

      unencoded_array.append(local_array);
    }

  QByteArray base64_encoded_array =
    unencoded_array.toBase64(QByteArray::Base64Encoding | QByteArray::OmitTrailingEquals);

  return base64_encoded_array;
}

Referenced by MassSpectrumCombinerInterface.

◆ xValues()

std::vector< pappso_double > pappso::Trace::xValues ( ) const

Definition at line 663 of file trace.cpp.

{
  std::vector<pappso_double> values;

  for(auto &&dataPoint : *this)
    {
      values.push_back(dataPoint.x);
    }

  return values;
}

Referenced by pappso::BaseTracePlotWidget::addTrace(), MassSpectrumCombinerInterface, and pappso::masschroq::CborOutputStream::writeTrace().

◆ yAsBase64Encoded()

QByteArray pappso::Trace::yAsBase64Encoded ( ) const

Definition at line 1132 of file trace.cpp.

{
  QByteArray unencoded_array;

  for(auto &&data_point : *this)
    {
      QByteArray local_array;
      local_array.setNum(data_point.y, 'f', 12);
      local_array.append("\n");

      unencoded_array.append(local_array);
    }

  QByteArray base64_encoded_array =
    unencoded_array.toBase64(QByteArray::Base64Encoding | QByteArray::OmitTrailingEquals);

  return base64_encoded_array;
}

Referenced by MassSpectrumCombinerInterface.

◆ yValues()

std::vector< pappso_double > pappso::Trace::yValues ( ) const

Definition at line 677 of file trace.cpp.

{
  std::vector<pappso_double> values;

  for(auto &&dataPoint : *this)
    {
      values.push_back(dataPoint.y);
    }

  return values;
}

Referenced by pappso::BaseTracePlotWidget::addTrace(), pappso::MsRunRetentionTime< T >::align(), MassSpectrumCombinerInterface, pappso::masschroq::CborOutputStream::writeMsRunRetentionTime(), and pappso::masschroq::CborOutputStream::writeTrace().

Friends And Related Symbol Documentation

◆ MassSpectrumCombinerInterface

friend class MassSpectrumCombinerInterface

friend

Definition at line 154 of file trace.h.

References Trace(), append(), pappso::Enums::ascending, containsX(), dataPointCstIteratorWithX(), dataPointIndexWithX(), dataPointIteratorWithX(), filter(), initialize(), makeTraceCstSPtr(), makeTraceSPtr(), MassSpectrumCombinerInterface, maxX(), maxXDataPoint(), maxY(), maxYDataPoint(), minX(), minXDataPoint(), minY(), minYDataPoint(), operator=(), removeZeroYDataPoints(), sort(), sortX(), sortY(), sumY(), toMap(), toString(), unique(), pappso::x, xAsBase64Encoded(), xValues(), yAsBase64Encoded(), and yValues().

Referenced by MassSpectrumCombinerInterface.

◆ TraceCombiner

friend class TraceCombiner

friend

Definition at line 150 of file trace.h.

References TraceCombiner.

Referenced by TraceCombiner.

◆ TraceMinusCombiner

friend class TraceMinusCombiner

friend

Definition at line 151 of file trace.h.

References TraceMinusCombiner.

Referenced by TraceMinusCombiner.

◆ TracePlusCombiner

friend class TracePlusCombiner

friend

Definition at line 152 of file trace.h.

References TracePlusCombiner.

Referenced by TracePlusCombiner.

The documentation for this class was generated from the following files:

pappsomspp/core/trace/trace.h
pappsomspp/core/trace/trace.cpp

Public Member Functions

Protected Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Trace() [1/9]

◆ Trace() [2/9]

◆ Trace() [3/9]

◆ Trace() [4/9]

◆ Trace() [5/9]

◆ Trace() [6/9]

◆ Trace() [7/9]

◆ Trace() [8/9]

◆ Trace() [9/9]

◆ ~Trace()

Member Function Documentation

◆ append()

◆ containsX()

◆ dataPointCstIteratorWithX()

◆ dataPointIndexWithX()

◆ dataPointIteratorWithX()

◆ filter()

◆ initialize() [1/5]

◆ initialize() [2/5]

◆ initialize() [3/5]

◆ initialize() [4/5]

◆ initialize() [5/5]

◆ makeTraceCstSPtr()

◆ makeTraceSPtr()

◆ maxX()

◆ maxXDataPoint()

◆ maxY() [1/2]

◆ maxY() [2/2]

◆ maxYDataPoint()

◆ minX()

◆ minXDataPoint()

◆ minY()

◆ minYDataPoint()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ removeZeroYDataPoints()

◆ sort()

◆ sortX()

◆ sortY()

◆ sumY() [1/2]

◆ sumY() [2/2]

◆ toMap()

◆ toString()

◆ unique()

◆ xAsBase64Encoded()

◆ xValues()

◆ yAsBase64Encoded()

◆ yValues()

Friends And Related Symbol Documentation

◆ MassSpectrumCombinerInterface

◆ TraceCombiner

◆ TraceMinusCombiner

◆ TracePlusCombiner
