#include <baseplotwidget.h>

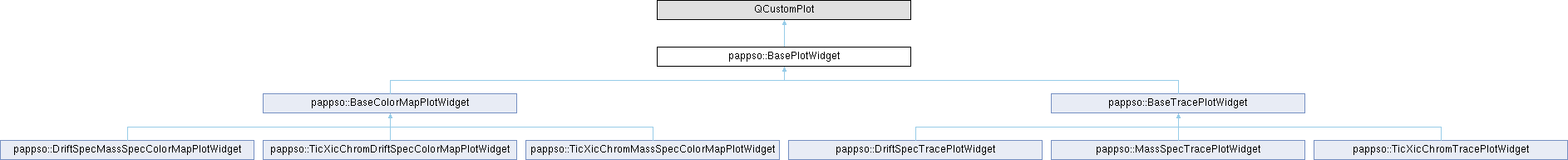

Inheritance diagram for pappso::BasePlotWidget:

Signals
void	setFocusSignal ()

void	lastCursorHoveredPointSignal (const QPointF &pointf)

void	plotRangesChangedSignal (const BasePlotContext &context)

void	xAxisMeasurementSignal (const BasePlotContext &context, bool with_delta)

void	keyPressEventSignal (const BasePlotContext &context)

void	keyReleaseEventSignal (const BasePlotContext &context)

void	mousePressEventSignal (const BasePlotContext &context)

void	mouseReleaseEventSignal (const BasePlotContext &context)

void	mouseWheelEventSignal (const BasePlotContext &context)

void	plottableSelectionChangedSignal (QCPAbstractPlottable *plottable_p, bool selected)

void	integrationRequestedSignal (const BasePlotContext &context)

void	plottableDestructionRequestedSignal (BasePlotWidget base_plot_widget_p, QCPAbstractPlottable plottable_p, const BasePlotContext &context)

Public Member Functions
	BasePlotWidget (QWidget *parent)

	BasePlotWidget (QWidget *parent, const QString &x_axis_label, const QString &y_axis_label)

virtual	~BasePlotWidget ()
	Destruct `this` BasePlotWidget instance.

virtual bool	setupWidget ()

virtual void	setPen (const QPen &pen)

virtual const QPen &	getPen () const

virtual void	setPlottingColor (QCPAbstractPlottable *plottable_p, const QColor &new_color)

virtual void	setPlottingColor (int index, const QColor &new_color)

virtual QColor	getPlottingColor (QCPAbstractPlottable *plottable_p) const

virtual QColor	getPlottingColor (int index=0) const

virtual void	setAxisLabelX (const QString &label)

virtual void	setAxisLabelY (const QString &label)

virtual void	resetAxesRangeHistory ()

virtual void	updateAxesRangeHistory ()
	Create new axis range history items and append them to the history.

virtual void	restorePreviousAxesRangeHistory ()
	Go up one history element in the axis history.

virtual void	restoreAxesRangeHistory (std::size_t index)
	Get the axis histories at index `index` and update the plot ranges.

virtual void	keyPressEvent (QKeyEvent *event)
	KEYBOARD-related EVENTS.

virtual void	keyReleaseEvent (QKeyEvent *event)
	Handle specific key codes and trigger respective actions.

virtual void	spaceKeyReleaseEvent (QKeyEvent *event)

virtual void	directionKeyPressEvent (QKeyEvent *event)

virtual void	directionKeyReleaseEvent (QKeyEvent *event)

virtual void	mousePseudoButtonKeyPressEvent (QKeyEvent *event)

virtual void	mousePseudoButtonKeyReleaseEvent (QKeyEvent *event)

virtual void	mousePressHandler (QMouseEvent *event)
	KEYBOARD-related EVENTS.

virtual void	mouseReleaseHandler (QMouseEvent *event)

virtual void	mouseReleaseHandlerLeftButton ()

virtual void	mouseReleaseHandlerRightButton ()

virtual void	mouseWheelHandler (QWheelEvent *event)

virtual void	mouseMoveHandler (QMouseEvent *event)
	KEYBOARD-related EVENTS.

virtual void	mouseMoveHandlerNotDraggingCursor ()

virtual void	mouseMoveHandlerDraggingCursor ()

virtual void	mouseMoveHandlerLeftButtonDraggingCursor ()

virtual void	mouseMoveHandlerRightButtonDraggingCursor ()

virtual void	axisDoubleClickHandler (QCPAxis axis, QCPAxis::SelectablePart part, QMouseEvent event)

bool	isClickOntoXAxis (const QPointF &mousePoint)

bool	isClickOntoYAxis (const QPointF &mousePoint)

int	dragDirection ()
	MOUSE-related EVENTS.

virtual void	moveMouseCursorGraphCoordToGlobal (QPointF plot_coordinates)

virtual void	moveMouseCursorPixelCoordToGlobal (QPointF local_coordinates)

virtual void	horizontalMoveMouseCursorCountPixels (int pixel_count)

virtual QPointF	horizontalGetGraphCoordNewPointCountPixels (int pixel_count)

virtual void	verticalMoveMouseCursorCountPixels (int pixel_count)

virtual QPointF	verticalGetGraphCoordNewPointCountPixels (int pixel_count)

virtual QCPRange	getRangeX (bool &found_range, int index) const
	MOUSE MOVEMENTS mouse/keyboard-triggered.

virtual QCPRange	getRangeY (bool &found_range, int index) const

QCPRange	getRange (Enums::Axis axis, RangeType range_type, bool &found_range) const

virtual QCPRange	getInnermostRangeX (bool &found_range) const

virtual QCPRange	getOutermostRangeX (bool &found_range) const

virtual QCPRange	getInnermostRangeY (bool &found_range) const

virtual QCPRange	getOutermostRangeY (bool &found_range) const

void	yMinMaxOnXAxisCurrentRange (double &min, double &max, QCPAbstractPlottable *plottable_p=nullptr)

void	yMinMaxOnXAxisCurrentRange (double &min, double &max, int index)

virtual void	axisRescale ()
	RANGE-related functions.

virtual void	axisReframe ()

virtual void	axisZoom ()

virtual void	axisPan ()

virtual void	replotWithAxesRanges (QCPRange xAxisRange, QCPRange yAxisRange, Enums::Axis axis)

virtual void	replotWithAxisRangeX (double lower, double upper)

virtual void	replotWithAxisRangeY (double lower, double upper)

virtual void	hideAllPlotItems ()
	PLOTTING / REPLOTTING functions.

virtual void	showTracers ()
	Show the traces (vertical and horizontal).

virtual void	hideTracers ()
	Hide the traces (vertical and horizontal).

virtual void	drawXScopeSpanFeatures ()

virtual void	drawYScopeSpanFeatures ()

virtual void	calculateDragDeltas ()

virtual bool	isVerticalDisplacementAboveThreshold ()

virtual void	drawSelectionRectangleAndPrepareZoom (bool as_line_segment=false, bool for_integration=false)

virtual void	updateIntegrationScopeDrawing (bool as_line_segment=false, bool for_integration=false)

virtual void	resetSelectionRectangle ()

virtual void	hideSelectionRectangle (bool reset_values=false)

virtual bool	isSelectionRectangleVisible ()

virtual SelectionDrawingLines	whatIsVisibleOfTheSelectionRectangle ()

virtual void	setFocus ()
	PLOT ITEMS : TRACER TEXT ITEMS...

virtual void	redrawPlotBackground (QWidget *focusedPlotWidget)
	Redraw the background of the `focusedPlotWidget` plot widget.

virtual void	updateContextXandYAxisRanges ()

virtual const BasePlotContext &	getContext () const

Protected Member Functions
virtual void	createAllAncillaryItems ()

virtual void	updateIntegrationScope (bool for_integration=false)

virtual void	updateIntegrationScopeRect (bool for_integration=false)

virtual void	updateIntegrationScopeHorizontalRhomb (bool for_integration=false)

virtual void	updateIntegrationScopeVerticalRhomb (bool for_integration=false)

virtual void	updateIntegrationScopeRhomb (bool for_integration=false)

virtual QString	allLayerNamesToString () const

virtual QString	layerableLayerName (QCPLayerable *layerable_p) const

virtual int	layerableLayerIndex (QCPLayerable *layerable_p) const

Protected Attributes
QString	m_name = "NOT_SET"
	Name of the plot widget.

QString	m_desc = "NOT_SET"
	Description of the plot widget.

QString	m_fileName
	The name of the data file from which the mass data were read.

QString	m_axisLabelX

QString	m_axisLabelY

BasePlotContext	m_context

int	m_leftMousePseudoButtonKey = Qt::Key_Less

int	m_rightMousePseudoButtonKey = Qt::Key_Greater

QCPItemLine *	mp_selectionRectangeLine1 = nullptr
	Rectangle defining the borders of zoomed-in/out data.

QCPItemLine *	mp_selectionRectangeLine2 = nullptr

QCPItemLine *	mp_selectionRectangeLine3 = nullptr

QCPItemLine *	mp_selectionRectangeLine4 = nullptr

QCPItemText *	mp_xDeltaTextItem = nullptr
	Text describing the x-axis delta value during a drag operation.

QCPItemText *	mp_yDeltaTextItem = nullptr

bool	m_shouldTracersBeVisible = true
	Tells if the tracers should be visible.

QCPItemLine *	mp_hPosTracerItem = nullptr
	Horizontal position tracer.

QCPItemLine *	mp_vPosTracerItem = nullptr
	Vertical position tracer.

QCPItemLine *	mp_vStartTracerItem = nullptr
	Vertical selection start tracer (typically in green).

QCPItemLine *	mp_vEndTracerItem = nullptr
	Vertical selection end tracer (typically in red).

std::size_t	m_lastAxisRangeHistoryIndex = 0
	Index of the last axis range history item.

std::vector< QCPRange * >	m_xAxisRangeHistory
	List of x axis ranges occurring during the panning zooming actions.

std::vector< QCPRange * >	m_yAxisRangeHistory
	List of y axis ranges occurring during the panning zooming actions.

int	m_mouseMoveHandlerSkipAmount = 10
	How many mouse move events must be skipped *‍/.

int	m_mouseMoveHandlerSkipCount = 0
	Counter to handle the "fat data" mouse move event handling.

QColor	m_unfocusedColor = QColor("lightgray")
	Color used for the background of unfocused plot.

QBrush	m_unfocusedBrush = QBrush(m_unfocusedColor)
	Color used for the background of unfocused plot.

QColor	m_focusedColor = QColor(Qt::transparent)
	Color used for the background of focused plot.

QBrush	m_focusedBrush = QBrush(m_focusedColor)
	Color used for the background of focused plot.

QPen	m_pen
	Pen used to draw the graph and textual elements in the plot widget.

Detailed Description

Definition at line 83 of file baseplotwidget.h.

Constructor & Destructor Documentation

◆ BasePlotWidget() [1/2]

pappso::BasePlotWidget::BasePlotWidget ( QWidget * parent )

explicit

Definition at line 50 of file baseplotwidget.cpp.

                                              : QCustomPlot(parent)
{
  if(parent == nullptr)
    qFatal("Programming error.");

  // Default settings for the pen used to graph the data.
  m_pen.setStyle(Qt::SolidLine);
  m_pen.setBrush(Qt::black);
  m_pen.setWidth(1);

  // qDebug() << "Created new BasePlotWidget with" << layerCount()
  //<< "layers before setting up widget.";
  // qDebug().noquote() << "All layer names:\n" << allLayerNamesToString();

  // As of today 20210313, the QCustomPlot is created with the following 6
  // layers:
  //
  // All layers' name:
  //
  // Layer index 0 name: background
  // Layer index 1 name: grid
  // Layer index 2 name: main
  // Layer index 3 name: axes
  // Layer index 4 name: legend
  // Layer index 5 name: overlay

  if(!setupWidget())
    qFatal("Programming error.");

  // Do not call createAllAncillaryItems() in this base class because all the
  // items will have been created *before* the addition of plots and then the
  // rendering order will hide them to the viewer, since the rendering order is
  // according to the order in which the items have been created.
  //
  // The fact that the ancillary items are created before trace plots is not a
  // problem because the trace plots are sparse and do not effectively hide the
  // data.
  //
  // But, in the color map plot widgets, we cannot afford to create the
  // ancillary items *before* the plot itself because then, the rendering of the
  // plot (created after) would screen off the ancillary items (created before).
  //
  // So, the createAllAncillaryItems() function needs to be called in the
  // derived classes at the most appropriate moment in the setting up of the
  // widget.
  //
  // All this is only a workaround of a bug in QCustomPlot. See
  // https://www.qcustomplot.com/index.php/support/forum/2283.
  //
  // I initially wanted to have a plots layer on top of the default background
  // layer and a items layer on top of it. But that setting prevented the
  // selection of graphs.

  // qDebug() << "Created new BasePlotWidget with" << layerCount()
  //<< "layers after setting up widget.";
  // qDebug().noquote() << "All layer names:\n" << allLayerNamesToString();

  show();
}

References m_pen, and setupWidget().

Referenced by pappso::BaseColorMapPlotWidget::BaseColorMapPlotWidget(), pappso::BaseColorMapPlotWidget::BaseColorMapPlotWidget(), pappso::BaseTracePlotWidget::BaseTracePlotWidget(), pappso::BaseTracePlotWidget::BaseTracePlotWidget(), and plottableDestructionRequestedSignal().

◆ BasePlotWidget() [2/2]

pappso::BasePlotWidget::BasePlotWidget	(	QWidget *	parent,
		const QString &	x_axis_label,
		const QString &	y_axis_label )

explicit

Definition at line 111 of file baseplotwidget.cpp.

  : QCustomPlot(parent), m_axisLabelX(x_axis_label), m_axisLabelY(y_axis_label)
{
  // qDebug();

  if(parent == nullptr)
    qFatal("Programming error.");

  // Default settings for the pen used to graph the data.
  m_pen.setStyle(Qt::SolidLine);
  m_pen.setBrush(Qt::black);
  m_pen.setWidth(1);

  xAxis->setLabel(x_axis_label);
  yAxis->setLabel(y_axis_label);

  // qDebug() << "Created new BasePlotWidget with" << layerCount()
  //<< "layers before setting up widget.";
  // qDebug().noquote() << "All layer names:\n" << allLayerNamesToString();

  // As of today 20210313, the QCustomPlot is created with the following 6
  // layers:
  //
  // All layers' name:
  //
  // Layer index 0 name: background
  // Layer index 1 name: grid
  // Layer index 2 name: main
  // Layer index 3 name: axes
  // Layer index 4 name: legend
  // Layer index 5 name: overlay

  if(!setupWidget())
    qFatal("Programming error.");

  // qDebug() << "Created new BasePlotWidget with" << layerCount()
  //<< "layers after setting up widget.";
  // qDebug().noquote() << "All layer names:\n" << allLayerNamesToString();

  show();
}

References m_axisLabelX, m_axisLabelY, m_pen, and setupWidget().

◆ ~BasePlotWidget()

pappso::BasePlotWidget::~BasePlotWidget ( )

virtual

Destruct this BasePlotWidget instance.

The destruction involves clearing the history, deleting all the axis range history items for x and y axes.

Definition at line 163 of file baseplotwidget.cpp.

{
  // qDebug() << "In the destructor of plot widget:" << this;

  m_xAxisRangeHistory.clear();
  m_yAxisRangeHistory.clear();

  // Note that the QCustomPlot xxxItem objects are allocated with (this) which
  // means their destruction is automatically handled upon *this' destruction.
}

References m_xAxisRangeHistory, and m_yAxisRangeHistory.

Member Function Documentation

◆ allLayerNamesToString()

QString pappso::BasePlotWidget::allLayerNamesToString ( ) const

protectedvirtual

Definition at line 176 of file baseplotwidget.cpp.

{

  QString text;

  for(int iter = 0; iter < layerCount(); ++iter)
    {
      text += QString("Layer index %1: %2\n").arg(iter).arg(layer(iter)->name());
    }

  return text;
}

◆ axisDoubleClickHandler()

void pappso::BasePlotWidget::axisDoubleClickHandler	(	QCPAxis *	axis,
		QCPAxis::SelectablePart	part,
		QMouseEvent *	event )

virtual

Reimplemented in pappso::BaseTracePlotWidget.

Definition at line 1668 of file baseplotwidget.cpp.

{
  // qDebug();

  m_context.m_keyboardModifiers = QGuiApplication::queryKeyboardModifiers();

  if(m_context.m_keyboardModifiers & Qt::ControlModifier)
    {
      // qDebug();

      // If the Ctrl modifiers is active, then both axes are to be reset. Also
      // the histories are reset also.

      rescaleAxes();
      resetAxesRangeHistory();
    }
  else
    {
      // qDebug();

      // Only the axis passed as parameter is to be rescaled.
      // Reset the range of that axis to the max view possible.

      axis->rescale();

      updateAxesRangeHistory();

      event->accept();
    }

  // The double-click event does not cancel the mouse press event. That is, if
  // left-double-clicking, at the end of the operation the button still
  // "pressed". We need to remove manually the button from the pressed buttons
  // context member.

  m_context.m_pressedMouseButtons ^= event->button();

  updateContextXandYAxisRanges();

  emit plotRangesChangedSignal(m_context);

  replot();
}

References m_context, plotRangesChangedSignal(), resetAxesRangeHistory(), updateAxesRangeHistory(), and updateContextXandYAxisRanges().

Referenced by setupWidget().

◆ axisPan()

void pappso::BasePlotWidget::axisPan ( )

virtual

Reimplemented in pappso::BaseTracePlotWidget.

Definition at line 2141 of file baseplotwidget.cpp.

{
  // Sanity check
  if(!m_context.m_wasClickOnXAxis && !m_context.m_wasClickOnYAxis)
    qFatal(
      "This function can only be called if the mouse click was on one of the "
      "axes");

  if(m_context.m_wasClickOnXAxis)
    {
      xAxis->setRange(m_context.m_xRange.lower - m_context.m_xDelta,
                      m_context.m_xRange.upper - m_context.m_xDelta);
    }

  if(m_context.m_wasClickOnYAxis)
    {
      yAxis->setRange(m_context.m_yRange.lower - m_context.m_yDelta,
                      m_context.m_yRange.upper - m_context.m_yDelta);
    }

  updateContextXandYAxisRanges();

  // qDebug() << "The updated context:" << m_context.toString();

  // We cannot store the new ranges in the history, because the pan operation
  // involved a huge quantity of micro-movements elicited upon each mouse move
  // cursor event so we would have a huge history.
  // updateAxesRangeHistory();

  // Now that the context has the right range values, we can emit the
  // signal that will be used by this plot widget users, typically to
  // abide by the x/y range lock required by the user.

  emit plotRangesChangedSignal(m_context);

  replot();
}

References m_context, plotRangesChangedSignal(), and updateContextXandYAxisRanges().

Referenced by mouseMoveHandlerLeftButtonDraggingCursor(), and yMinMaxOnXAxisCurrentRange().

◆ axisReframe()

void pappso::BasePlotWidget::axisReframe ( )

virtual

Reimplemented in pappso::BaseTracePlotWidget.

Definition at line 2086 of file baseplotwidget.cpp.

{

  // double sorted_start_drag_point_x =
  // std::min(m_context.m_startDragPoint.x(),
  // m_context.m_currentDragPoint.x());

  // xAxis->setRange(sorted_start_drag_point_x,
  // sorted_start_drag_point_x + fabs(m_context.m_xDelta));

  xAxis->setRange(QCPRange(m_context.m_xRegionRangeStart, m_context.m_xRegionRangeEnd));

  // Note that the y axis should be rescaled from current lower value to new
  // upper value matching the y-axis position of the cursor when the mouse
  // button was released.

  yAxis->setRange(xAxis->range().lower,
                  std::max<double>(m_context.m_yRegionRangeStart, m_context.m_yRegionRangeEnd));

  // qDebug() << "xaxis:" << xAxis->range().lower << "-" <<
  // xAxis->range().upper
  //<< "yaxis:" << yAxis->range().lower << "-" << yAxis->range().upper;

  updateContextXandYAxisRanges();

  updateAxesRangeHistory();
  emit plotRangesChangedSignal(m_context);

  replot();
}

References m_context, plotRangesChangedSignal(), updateAxesRangeHistory(), and updateContextXandYAxisRanges().

Referenced by mouseReleaseHandlerLeftButton(), and yMinMaxOnXAxisCurrentRange().

◆ axisRescale()

void pappso::BasePlotWidget::axisRescale ( )

virtual

RANGE-related functions.

PLOTTING / REPLOTTING functions

Reimplemented in pappso::BaseTracePlotWidget.

Definition at line 2030 of file baseplotwidget.cpp.

{
  // Get the current x lower/upper range, that is, leftmost/rightmost x
  // coordinate.
  double xLower = xAxis->range().lower;
  double xUpper = xAxis->range().upper;

  // Get the current y lower/upper range, that is, bottommost/topmost y
  // coordinate.
  double yLower = yAxis->range().lower;
  double yUpper = yAxis->range().upper;

  // This function is called only when the user has clicked on the x/y axis or
  // when the user has dragged the left mouse button with the Ctrl key
  // modifier. The m_context.m_wasClickOnXAxis is then simulated in the mouse
  // move handler. So we need to test which axis was clicked-on.

  if(m_context.m_wasClickOnXAxis)
    {
      // We are changing the range of the X axis.

      // If xDelta is < 0, then we were dragging from right to left, we are
      // compressing the view on the x axis, by adding new data to the right
      // hand size of the graph. So we add xDelta to the upper bound of the
      // range. Otherwise we are uncompressing the view on the x axis and
      // remove the xDelta from the upper bound of the range. This is why we
      // have the
      // '-'
      // and not '+' below;

      xAxis->setRange(xLower, xUpper - m_context.m_xDelta);
    }
  // End of
  // if(m_context.m_wasClickOnXAxis)
  else // that is, if(m_context.m_wasClickOnYAxis)
    {
      // We are changing the range of the Y axis.

      // See above for an explanation of the computation (the - sign below).

      yAxis->setRange(yLower, yUpper - m_context.m_yDelta);
    }
  // End of
  // else // that is, if(m_context.m_wasClickOnYAxis)

  // Update the context with the current axes ranges

  updateContextXandYAxisRanges();

  emit plotRangesChangedSignal(m_context);

  replot();
}

References m_context, plotRangesChangedSignal(), and updateContextXandYAxisRanges().

Referenced by mouseMoveHandlerLeftButtonDraggingCursor(), and yMinMaxOnXAxisCurrentRange().

◆ axisZoom()

void pappso::BasePlotWidget::axisZoom ( )

virtual

Reimplemented in pappso::BaseTracePlotWidget.

Definition at line 2119 of file baseplotwidget.cpp.

{

  // Use the m_context.m_xRegionRangeStart/End values, but we need to sort the
  // values before using them, because now we want to really have the lower x
  // value. Simply craft a QCPRange that will swap the values if lower is not
  // < than upper QCustomPlot calls this normalization).

  xAxis->setRange(QCPRange(m_context.m_xRegionRangeStart, m_context.m_xRegionRangeEnd));

  yAxis->setRange(QCPRange(m_context.m_yRegionRangeStart, m_context.m_yRegionRangeEnd));

  updateContextXandYAxisRanges();

  updateAxesRangeHistory();
  emit plotRangesChangedSignal(m_context);

  replot();
}

References m_context, plotRangesChangedSignal(), updateAxesRangeHistory(), and updateContextXandYAxisRanges().

Referenced by mouseReleaseHandlerLeftButton(), and yMinMaxOnXAxisCurrentRange().

◆ calculateDragDeltas()

void pappso::BasePlotWidget::calculateDragDeltas ( )

virtual

Definition at line 2556 of file baseplotwidget.cpp.

{

  // We compute signed differentials. If the user does not want the sign,
  // fabs(double) is their friend.

  // Compute the xAxis differential:

  m_context.m_xDelta = m_context.m_currentDragPoint.x() - m_context.m_startDragPoint.x();

  // Same with the Y-axis range:

  m_context.m_yDelta = m_context.m_currentDragPoint.y() - m_context.m_startDragPoint.y();

  return;
}

References m_context.

Referenced by mouseMoveHandlerDraggingCursor(), and yMinMaxOnXAxisCurrentRange().

◆ createAllAncillaryItems()

void pappso::BasePlotWidget::createAllAncillaryItems ( )

protectedvirtual

Definition at line 220 of file baseplotwidget.cpp.

{
  // Make a copy of the pen to just change its color and set that color to
  // the tracer line.
  QPen pen = m_pen;

  // Create the lines that will act as tracers for position and selection of
  // regions.
  //
  // We have the cross hair that serves as the cursor. That crosshair cursor is
  // made of a vertical line (green, because when click-dragging the mouse it
  // becomes the tracer that is being anchored at the region start. The second
  // line i horizontal and is always black.

  pen.setColor(QColor("steelblue"));

  // The set of tracers (horizontal and vertical) that track the position of the
  // mouse cursor.

  mp_vPosTracerItem = new QCPItemLine(this);
  mp_vPosTracerItem->setLayer("plotsLayer");
  mp_vPosTracerItem->setPen(pen);
  mp_vPosTracerItem->start->setType(QCPItemPosition::ptPlotCoords);
  mp_vPosTracerItem->end->setType(QCPItemPosition::ptPlotCoords);
  mp_vPosTracerItem->start->setCoords(0, 0);
  mp_vPosTracerItem->end->setCoords(0, 0);

  mp_hPosTracerItem = new QCPItemLine(this);
  mp_hPosTracerItem->setLayer("plotsLayer");
  mp_hPosTracerItem->setPen(pen);
  mp_hPosTracerItem->start->setType(QCPItemPosition::ptPlotCoords);
  mp_hPosTracerItem->end->setType(QCPItemPosition::ptPlotCoords);
  mp_hPosTracerItem->start->setCoords(0, 0);
  mp_hPosTracerItem->end->setCoords(0, 0);

  // The set of tracers (horizontal only) that track the region
  // spanning/selection regions.
  //
  // The start vertical tracer is colored in greeen.
  pen.setColor(QColor("green"));

  mp_vStartTracerItem = new QCPItemLine(this);
  mp_vStartTracerItem->setLayer("plotsLayer");
  mp_vStartTracerItem->setPen(pen);
  mp_vStartTracerItem->start->setType(QCPItemPosition::ptPlotCoords);
  mp_vStartTracerItem->end->setType(QCPItemPosition::ptPlotCoords);
  mp_vStartTracerItem->start->setCoords(0, 0);
  mp_vStartTracerItem->end->setCoords(0, 0);

  // The end vertical tracer is colored in red.
  pen.setColor(QColor("red"));

  mp_vEndTracerItem = new QCPItemLine(this);
  mp_vEndTracerItem->setLayer("plotsLayer");
  mp_vEndTracerItem->setPen(pen);
  mp_vEndTracerItem->start->setType(QCPItemPosition::ptPlotCoords);
  mp_vEndTracerItem->end->setType(QCPItemPosition::ptPlotCoords);
  mp_vEndTracerItem->start->setCoords(0, 0);
  mp_vEndTracerItem->end->setCoords(0, 0);

  // When the user click-drags the mouse, the X distance between the drag start
  // point and the drag end point (current point) is the xDelta.
  mp_xDeltaTextItem = new QCPItemText(this);
  mp_xDeltaTextItem->setLayer("plotsLayer");
  mp_xDeltaTextItem->setColor(QColor("steelblue"));
  mp_xDeltaTextItem->setPositionAlignment(Qt::AlignBottom | Qt::AlignCenter);
  mp_xDeltaTextItem->position->setType(QCPItemPosition::ptPlotCoords);
  mp_xDeltaTextItem->setVisible(false);

  // Same for the y delta
  mp_yDeltaTextItem = new QCPItemText(this);
  mp_yDeltaTextItem->setLayer("plotsLayer");
  mp_yDeltaTextItem->setColor(QColor("steelblue"));
  mp_yDeltaTextItem->setPositionAlignment(Qt::AlignBottom | Qt::AlignCenter);
  mp_yDeltaTextItem->position->setType(QCPItemPosition::ptPlotCoords);
  mp_yDeltaTextItem->setVisible(false);

  // Make sure we prepare the four lines that will be needed to
  // draw the selection rectangle.
  pen = m_pen;

  pen.setColor("steelblue");

  mp_selectionRectangeLine1 = new QCPItemLine(this);
  mp_selectionRectangeLine1->setLayer("plotsLayer");
  mp_selectionRectangeLine1->setPen(pen);
  mp_selectionRectangeLine1->start->setType(QCPItemPosition::ptPlotCoords);
  mp_selectionRectangeLine1->end->setType(QCPItemPosition::ptPlotCoords);
  mp_selectionRectangeLine1->start->setCoords(0, 0);
  mp_selectionRectangeLine1->end->setCoords(0, 0);
  mp_selectionRectangeLine1->setVisible(false);

  mp_selectionRectangeLine2 = new QCPItemLine(this);
  mp_selectionRectangeLine2->setLayer("plotsLayer");
  mp_selectionRectangeLine2->setPen(pen);
  mp_selectionRectangeLine2->start->setType(QCPItemPosition::ptPlotCoords);
  mp_selectionRectangeLine2->end->setType(QCPItemPosition::ptPlotCoords);
  mp_selectionRectangeLine2->start->setCoords(0, 0);
  mp_selectionRectangeLine2->end->setCoords(0, 0);
  mp_selectionRectangeLine2->setVisible(false);

  mp_selectionRectangeLine3 = new QCPItemLine(this);
  mp_selectionRectangeLine3->setLayer("plotsLayer");
  mp_selectionRectangeLine3->setPen(pen);
  mp_selectionRectangeLine3->start->setType(QCPItemPosition::ptPlotCoords);
  mp_selectionRectangeLine3->end->setType(QCPItemPosition::ptPlotCoords);
  mp_selectionRectangeLine3->start->setCoords(0, 0);
  mp_selectionRectangeLine3->end->setCoords(0, 0);
  mp_selectionRectangeLine3->setVisible(false);

  mp_selectionRectangeLine4 = new QCPItemLine(this);
  mp_selectionRectangeLine4->setLayer("plotsLayer");
  mp_selectionRectangeLine4->setPen(pen);
  mp_selectionRectangeLine4->start->setType(QCPItemPosition::ptPlotCoords);
  mp_selectionRectangeLine4->end->setType(QCPItemPosition::ptPlotCoords);
  mp_selectionRectangeLine4->start->setCoords(0, 0);
  mp_selectionRectangeLine4->end->setCoords(0, 0);
  mp_selectionRectangeLine4->setVisible(false);
}

References m_pen, mp_hPosTracerItem, mp_selectionRectangeLine1, mp_selectionRectangeLine2, mp_selectionRectangeLine3, mp_selectionRectangeLine4, mp_vEndTracerItem, mp_vPosTracerItem, mp_vStartTracerItem, mp_xDeltaTextItem, and mp_yDeltaTextItem.

Referenced by pappso::BaseTracePlotWidget::BaseTracePlotWidget(), pappso::BaseTracePlotWidget::BaseTracePlotWidget(), pappso::BaseColorMapPlotWidget::addColorMap(), and pappso::BaseColorMapPlotWidget::addColorMap().

◆ directionKeyPressEvent()

void pappso::BasePlotWidget::directionKeyPressEvent ( QKeyEvent * event )

virtual

Definition at line 803 of file baseplotwidget.cpp.

{
  // qDebug() << "event key:" << event->key();

  // The user is trying to move the positional cursor/markers. There are
  // multiple way they can do that:
  //
  // 1.a. Hitting the arrow left/right keys alone will search for next pixel.
  // 1.b. Hitting the arrow left/right keys with Alt modifier will search for
  // a multiple of pixels that might be equivalent to one 20th of the pixel
  // width of the plot widget. 1.c Hitting the left/right keys with Alt and
  // Shift modifiers will search for a multiple of pixels that might be the
  // equivalent to half of the pixel width.
  //
  // 2. Hitting the Control modifier will move the cursor to the next data
  // point of the graph.

  int pixel_increment = 0;

  if(m_context.m_keyboardModifiers == Qt::NoModifier)
    pixel_increment = 1;
  else if(m_context.m_keyboardModifiers == Qt::AltModifier)
    pixel_increment = 50;

  // The user is moving the positional markers. This is equivalent to a
  // non-dragging cursor movement to the next pixel. Note that the origin is
  // located at the top left, so key down increments and key up decrements.

  if(event->key() == Qt::Key_Left)
    horizontalMoveMouseCursorCountPixels(-pixel_increment);
  else if(event->key() == Qt::Key_Right)
    horizontalMoveMouseCursorCountPixels(pixel_increment);
  else if(event->key() == Qt::Key_Up)
    verticalMoveMouseCursorCountPixels(-pixel_increment);
  else if(event->key() == Qt::Key_Down)
    verticalMoveMouseCursorCountPixels(pixel_increment);

  event->accept();
}

References horizontalMoveMouseCursorCountPixels(), m_context, and verticalMoveMouseCursorCountPixels().

Referenced by keyPressEvent().

◆ directionKeyReleaseEvent()

void pappso::BasePlotWidget::directionKeyReleaseEvent ( QKeyEvent * event )

virtual

Definition at line 845 of file baseplotwidget.cpp.

{
  // qDebug() << "event key:" << event->key();
  event->accept();
}

Referenced by keyReleaseEvent().

◆ dragDirection()

int pappso::BasePlotWidget::dragDirection ( )

MOUSE-related EVENTS.

MOUSE MOVEMENTS mouse/keyboard-triggered

Definition at line 1768 of file baseplotwidget.cpp.

{
  // The user is dragging the mouse, probably to rescale the axes, but we need
  // to sort out in which direction the drag is happening.

  // This function should be called after calculateDragDeltas, so that
  // m_context has the proper x/y delta values that we'll compare.

  // Note that we cannot compare simply x or y deltas because the y axis might
  // have a different scale that the x axis. So we first need to convert the
  // positions to pixels.

  double x_delta_pixel = fabs(xAxis->coordToPixel(m_context.m_currentDragPoint.x()) -
                              xAxis->coordToPixel(m_context.m_startDragPoint.x()));

  double y_delta_pixel = fabs(yAxis->coordToPixel(m_context.m_currentDragPoint.y()) -
                              yAxis->coordToPixel(m_context.m_startDragPoint.y()));

  if(x_delta_pixel > y_delta_pixel)
    return Qt::Horizontal;

  return Qt::Vertical;
}

References m_context.

◆ drawSelectionRectangleAndPrepareZoom()

void pappso::BasePlotWidget::drawSelectionRectangleAndPrepareZoom	(	bool	as_line_segment = false,
		bool	for_integration = false )

virtual

Definition at line 2282 of file baseplotwidget.cpp.

{
  // The user has dragged the mouse left button on the graph, which means he
  // is willing to draw a selection rectangle, either for zooming-in or for
  // integration.

  if(mp_xDeltaTextItem != nullptr)
    mp_xDeltaTextItem->setVisible(false);
  if(mp_yDeltaTextItem != nullptr)
    mp_yDeltaTextItem->setVisible(false);

  // Ensure the right selection rectangle is drawn.

  updateIntegrationScopeDrawing(as_line_segment, for_integration);

  // Note that if we draw a zoom rectangle, then we are certainly not
  // measuring anything. So set the boolean value to false so that the user of
  // this widget or derived classes know that there is nothing to perform upon
  // (like deconvolution, for example).

  m_context.m_isMeasuringDistance = false;

  // Also remove the delta value from the pipeline by sending a simple
  // distance without measurement signal.

  emit xAxisMeasurementSignal(m_context, false);

  replot();
}

References m_context, mp_xDeltaTextItem, mp_yDeltaTextItem, updateIntegrationScopeDrawing(), and xAxisMeasurementSignal().

Referenced by mouseMoveHandlerLeftButtonDraggingCursor(), mouseMoveHandlerRightButtonDraggingCursor(), and yMinMaxOnXAxisCurrentRange().

◆ drawXScopeSpanFeatures()

void pappso::BasePlotWidget::drawXScopeSpanFeatures ( )

virtual

Definition at line 2314 of file baseplotwidget.cpp.

{
  // Depending on the kind of integration scope, we will have to display
  // differently calculated values. We want to provide the user with
  // the horizontal span of the integration scope. There are different
  // situations.

  // 1. The scope is mono-dimensional across the x axis: the span
  // is thus simply the width.

  // 2. The scope is bi-dimensional and is a rectangle: the span is
  // thus simply the width.

  // 3. The socpe is bi-dimensional and is a rhomboid: the span is
  // the width.

  // In the first and second cases above, the width is equal to the
  // m_context.m_xDelta.

  // In the case of the rhomboid, the span is not m_context.m_xDelta,
  // it is more than that if the rhomboid is horizontal because it is
  // the m_context.m_xDelta plus the rhomboid's horizontal size.

  // FIXME: is this still true?
  //
  // We do not want to show the position markers because the only horiontal
  // line to be visible must be contained between the start and end vertical
  // tracer items.
  mp_hPosTracerItem->setVisible(false);
  mp_vPosTracerItem->setVisible(false);

  // We want to draw the text in the middle position of the leftmost-rightmost
  // point, even with rhomboid scopes.

  QPointF leftmost_point;
  if(!m_context.msp_integrationScope->getLeftMostPoint(leftmost_point))
    qFatal("Could not get the left-most point.");

  double width;
  if(!m_context.msp_integrationScope->getWidth(width))
    qFatal("Could not get width.");
  // qDebug() << "width:" << width;

  double x_axis_center_position = leftmost_point.x() + width / 2;

  // We want the text to print inside the rectangle, always at the current
  // drag point so the eye can follow the delta value while looking where to
  // drag the mouse. To position the text inside the rectangle, we need to
  // know what is the drag direction.

  // What is the distance between the rectangle line at current drag point and
  // the text itself. Think of this as a margin distance between the
  // point of interest and the actual position of the text.
  int pixels_away_from_line = 15;

  QPointF reference_point_for_y_axis_label_position;

  // ATTENTION: the pixel coordinates for the vertical direction go in reverse
  // order with respect to the y axis values !!! That is, pixel(0,0) is top
  // left of the graph.
  if(static_cast<int>(m_context.m_dragDirections) & static_cast<int>(DragDirections::BOTTOM_TO_TOP))
    {
      // We need to print outside the rectangle, that is pixels_away_from_line
      // pixels to the top, so with pixel y value decremented of that
      // pixels_above_line value (one would have expected to increment that
      // value, along the y axis, but the coordinates in pixel go in reverse
      // order).

      pixels_away_from_line *= -1;

      if(!m_context.msp_integrationScope->getTopMostPoint(
           reference_point_for_y_axis_label_position))
        qFatal("Failed to get top most point.");
    }
  else
    {
      if(!m_context.msp_integrationScope->getBottomMostPoint(
           reference_point_for_y_axis_label_position))
        qFatal("Failed to get bottom most point.");
    }

  // double y_axis_pixel_coordinate =
  // yAxis->coordToPixel(m_context.m_currentDragPoint.y());
  double y_axis_pixel_coordinate =
    yAxis->coordToPixel(reference_point_for_y_axis_label_position.y());

  // Now that we have the coordinate in pixel units, we can correct
  // it by the value of the margin we want to give.
  double y_axis_modified_pixel_coordinate = y_axis_pixel_coordinate + pixels_away_from_line;

  // Set aside a point instance to store the pixel coordinates of the text.
  QPointF pixel_coordinates;

  pixel_coordinates.setX(x_axis_center_position);
  pixel_coordinates.setY(y_axis_modified_pixel_coordinate);

  // Now convert back to graph coordinates.
  QPointF graph_coordinates(xAxis->pixelToCoord(pixel_coordinates.x()),
                            yAxis->pixelToCoord(pixel_coordinates.y()));

  // qDebug() << "Should print the label at point:" << graph_coordinates;

  if(mp_xDeltaTextItem != nullptr)
    {
      mp_xDeltaTextItem->position->setCoords(x_axis_center_position, graph_coordinates.y());

      // Dynamically set the number of decimals to ensure we can read
      // a meaning full delta value even if it is very very very small.
      // That is, allow one to read 0.00333, 0.000333, 1.333 and so on.

      // The computation below only works properly when the passed
      // value is fabs() (not negative !!!).

      int decimals = Utils::zeroDecimalsInValue(width) + 3;

      QString label_text = QString("full x span %1 -- x drag delta %2")
                             .arg(width, 0, 'f', decimals)
                             .arg(fabs(m_context.m_xDelta), 0, 'f', decimals);

      mp_xDeltaTextItem->setText(label_text);

      mp_xDeltaTextItem->setFont(QFont(font().family(), 9));
      mp_xDeltaTextItem->setVisible(true);
    }

  // Set the boolean to true so that derived widgets know that something is
  // being measured, and they can act accordingly, for example by computing
  // deconvolutions in a mass spectrum.
  m_context.m_isMeasuringDistance = true;

  replot();

  // Let the caller know that we were measuring something.
  emit xAxisMeasurementSignal(m_context, true);

  return;
}

References pappso::BOTTOM_TO_TOP, m_context, mp_hPosTracerItem, mp_vPosTracerItem, mp_xDeltaTextItem, xAxisMeasurementSignal(), and pappso::Utils::zeroDecimalsInValue().

Referenced by mouseMoveHandlerLeftButtonDraggingCursor(), mouseMoveHandlerRightButtonDraggingCursor(), updateIntegrationScopeDrawing(), and yMinMaxOnXAxisCurrentRange().

◆ drawYScopeSpanFeatures()

void pappso::BasePlotWidget::drawYScopeSpanFeatures ( )

virtual

Definition at line 2453 of file baseplotwidget.cpp.

{
  // See drawXScopeSpanFeatures() for explanations.

  // Check right away if there is height!
  double height;
  if(!m_context.msp_integrationScope->getHeight(height))
    qFatal("Could not get height.");

  // If there is no height, we have nothing to do here.
  if(!height)
    return;
  // qDebug() << "height:" << height;

  // FIXME: is this still true?
  //
  // We do not want to show the position markers because the only horiontal
  // line to be visible must be contained between the start and end vertical
  // tracer items.
  mp_hPosTracerItem->setVisible(false);
  mp_vPosTracerItem->setVisible(false);

  // First the easy part: the vertical position: centered on the
  // scope Y span.
  QPointF bottom_most_point;
  if(!m_context.msp_integrationScope->getBottomMostPoint(bottom_most_point))
    qFatal("Could not get the bottom-most bottom point.");

  double y_axis_center_position = bottom_most_point.y() + height / 2;

  // We want to draw the text outside the rectangle (if normal rectangle)
  // at a small distance from the vertical limit of the scope at the
  // position of the current drag point. We need to check the horizontal
  // drag direction to put the text at the right place (left of
  // current drag point if dragging right to left, for example).

  // What is the distance between the rectangle line at current drag point and
  // the text itself.
  int pixels_away_from_line = 15;
  double x_axis_coordinate;
  double x_axis_pixel_coordinate;

  if(static_cast<int>(m_context.m_dragDirections) & static_cast<int>(DragDirections::RIGHT_TO_LEFT))
    {
      QPointF left_most_point;

      if(!m_context.msp_integrationScope->getLeftMostPoint(left_most_point))
        qFatal("Failed to get left most point.");

      x_axis_coordinate = left_most_point.x();

      pixels_away_from_line *= -1;
    }
  else
    {
      QPointF right_most_point;

      if(!m_context.msp_integrationScope->getRightMostPoint(right_most_point))
        qFatal("Failed to get right most point.");

      x_axis_coordinate = right_most_point.x();
    }
  x_axis_pixel_coordinate = xAxis->coordToPixel(x_axis_coordinate);

  double x_axis_modified_pixel_coordinate = x_axis_pixel_coordinate + pixels_away_from_line;

  // Set aside a point instance to store the pixel coordinates of the text.
  QPointF pixel_coordinates;

  pixel_coordinates.setX(x_axis_modified_pixel_coordinate);
  pixel_coordinates.setY(y_axis_center_position);

  // Now convert back to graph coordinates.

  QPointF graph_coordinates(xAxis->pixelToCoord(pixel_coordinates.x()),
                            yAxis->pixelToCoord(pixel_coordinates.y()));

  mp_yDeltaTextItem->position->setCoords(graph_coordinates.x(), y_axis_center_position);

  int decimals = Utils::zeroDecimalsInValue(height) + 3;

  QString label_text = QString("full y span %1 -- y drag delta %2")
                         .arg(height, 0, 'f', decimals)
                         .arg(fabs(m_context.m_yDelta), 0, 'f', decimals);

  mp_yDeltaTextItem->setText(label_text);
  mp_yDeltaTextItem->setFont(QFont(font().family(), 9));
  mp_yDeltaTextItem->setVisible(true);
  mp_yDeltaTextItem->setRotation(90);

  // Set the boolean to true so that derived widgets know that something is
  // being measured, and they can act accordingly, for example by computing
  // deconvolutions in a mass spectrum.
  m_context.m_isMeasuringDistance = true;

  replot();

  // Let the caller know that we were measuring something.
  emit xAxisMeasurementSignal(m_context, true);
}

References m_context, mp_hPosTracerItem, mp_vPosTracerItem, mp_yDeltaTextItem, pappso::RIGHT_TO_LEFT, xAxisMeasurementSignal(), and pappso::Utils::zeroDecimalsInValue().

Referenced by mouseMoveHandlerLeftButtonDraggingCursor(), mouseMoveHandlerRightButtonDraggingCursor(), and yMinMaxOnXAxisCurrentRange().

◆ getContext()

const BasePlotContext & pappso::BasePlotWidget::getContext ( ) const

virtual

Definition at line 3286 of file baseplotwidget.cpp.

{
  return m_context;
}

References m_context.

Referenced by yMinMaxOnXAxisCurrentRange().

◆ getInnermostRangeX()

QCPRange pappso::BasePlotWidget::getInnermostRangeX ( bool & found_range ) const

virtual

Definition at line 1995 of file baseplotwidget.cpp.

{

  return getRange(Enums::Axis::x, RangeType::innermost, found_range);
}

References getRange(), pappso::innermost, and pappso::Enums::x.

◆ getInnermostRangeY()

QCPRange pappso::BasePlotWidget::getInnermostRangeY ( bool & found_range ) const

virtual

Definition at line 2010 of file baseplotwidget.cpp.

{

  return getRange(Enums::Axis::y, RangeType::innermost, found_range);
}

References getRange(), pappso::innermost, and pappso::Enums::y.

◆ getOutermostRangeX()

QCPRange pappso::BasePlotWidget::getOutermostRangeX ( bool & found_range ) const

virtual

Definition at line 2003 of file baseplotwidget.cpp.

{
  return getRange(Enums::Axis::x, RangeType::outermost, found_range);
}

References getRange(), pappso::outermost, and pappso::Enums::x.

◆ getOutermostRangeY()

QCPRange pappso::BasePlotWidget::getOutermostRangeY ( bool & found_range ) const

virtual

Definition at line 2018 of file baseplotwidget.cpp.

{
  return getRange(Enums::Axis::y, RangeType::outermost, found_range);
}

References getRange(), pappso::outermost, and pappso::Enums::y.

◆ getPen()

const QPen & pappso::BasePlotWidget::getPen ( ) const

virtual

Definition at line 397 of file baseplotwidget.cpp.

{
  return m_pen;
}

References m_pen.

◆ getPlottingColor() [1/2]

QColor pappso::BasePlotWidget::getPlottingColor ( int index = 0 ) const

virtual

Reimplemented in pappso::BaseColorMapPlotWidget.

Definition at line 446 of file baseplotwidget.cpp.

{
  QCPGraph *graph_p = graph(index);

  if(graph_p == nullptr)
    qFatal("Programming error.");

  return getPlottingColor(graph_p);
}

References getPlottingColor().

◆ getPlottingColor() [2/2]

QColor pappso::BasePlotWidget::getPlottingColor ( QCPAbstractPlottable * plottable_p ) const

virtual

Definition at line 436 of file baseplotwidget.cpp.

{
  if(plottable_p == nullptr)
    qFatal("Programming error.");

  return plottable_p->pen().color();
}

Referenced by getPlottingColor().

◆ getRange()

QCPRange pappso::BasePlotWidget::getRange	(	Enums::Axis	axis,
		RangeType	range_type,
		bool &	found_range ) const

Definition at line 1905 of file baseplotwidget.cpp.

{

  // Iterate in all the graphs in this widget and return a QCPRange that has
  // its lower member as the greatest lower value of all
  // its upper member as the smallest upper value of all

  if(!graphCount())
    {
      found_range = false;

      return QCPRange(0, 1);
    }

  if(graphCount() == 1)
    return graph()->getKeyRange(found_range);

  bool found_at_least_one_range = false;

  // Create an invalid range.
  QCPRange result_range(QCPRange::minRange + 1, QCPRange::maxRange + 1);

  for(int iter = 0; iter < graphCount(); ++iter)
    {
      QCPRange temp_range;

      bool found_range_for_iter = false;

      QCPGraph *graph_p = graph(iter);

      // Depending on the axis param, select the key or value range.

      if(axis == Enums::Axis::x)
        temp_range = graph_p->getKeyRange(found_range_for_iter);
      else if(axis == Enums::Axis::y)
        temp_range = graph_p->getValueRange(found_range_for_iter);
      else
        qFatal("Cannot reach this point. Programming error.");

      // Was a range found for the iterated graph ? If not skip this
      // iteration.

      if(!found_range_for_iter)
        continue;

      // While the innermost_range is invalid, we need to seed it with a good
      // one. So check this.

      if(!QCPRange::validRange(result_range))
        qFatal("The obtained range is invalid !");

      // At this point we know the obtained range is OK.
      result_range = temp_range;

      // We found at least one valid range!
      found_at_least_one_range = true;

      // At this point we have two valid ranges to compare. Depending on
      // range_type, we need to perform distinct comparisons.

      if(range_type == RangeType::innermost)
        {
          if(temp_range.lower > result_range.lower)
            result_range.lower = temp_range.lower;
          if(temp_range.upper < result_range.upper)
            result_range.upper = temp_range.upper;
        }
      else if(range_type == RangeType::outermost)
        {
          if(temp_range.lower < result_range.lower)
            result_range.lower = temp_range.lower;
          if(temp_range.upper > result_range.upper)
            result_range.upper = temp_range.upper;
        }
      else
        qFatal("Cannot reach this point. Programming error.");

      // Continue to next graph, if any.
    }
  // End of
  // for(int iter = 0; iter < graphCount(); ++iter)

  // Let the caller know if we found at least one range.
  found_range = found_at_least_one_range;

  return result_range;
}

References pappso::innermost, pappso::outermost, pappso::Enums::x, and pappso::Enums::y.

Referenced by getInnermostRangeX(), getInnermostRangeY(), getOutermostRangeX(), and getOutermostRangeY().

◆ getRangeX()

QCPRange pappso::BasePlotWidget::getRangeX	(	bool &	found_range,
		int	index ) const

virtual

MOUSE MOVEMENTS mouse/keyboard-triggered.

RANGE-related functions

Definition at line 1881 of file baseplotwidget.cpp.

{
  QCPGraph *graph_p = graph(index);

  if(graph_p == nullptr)
    qFatal("Programming error.");

  return graph_p->getKeyRange(found_range);
}

◆ getRangeY()

QCPRange pappso::BasePlotWidget::getRangeY	(	bool &	found_range,
		int	index ) const

virtual

Definition at line 1893 of file baseplotwidget.cpp.

{
  QCPGraph *graph_p = graph(index);

  if(graph_p == nullptr)
    qFatal("Programming error.");

  return graph_p->getValueRange(found_range);
}

◆ hideAllPlotItems()

void pappso::BasePlotWidget::hideAllPlotItems ( )

virtual

PLOTTING / REPLOTTING functions.

PLOT ITEMS : TRACER TEXT ITEMS...

PLOT ITEMS : TRACER TEXT ITEMS... Hide the selection line, the xDelta text and the zoom rectangle items.

Definition at line 2232 of file baseplotwidget.cpp.

{
  mp_xDeltaTextItem->setVisible(false);
  mp_yDeltaTextItem->setVisible(false);

  // mp_zoomRectItem->setVisible(false);
  hideSelectionRectangle();

  // Force a replot to make sure the action is immediately visible by the
  // user, even without moving the mouse.
  replot();
}

References hideSelectionRectangle(), mp_xDeltaTextItem, and mp_yDeltaTextItem.

Referenced by restoreAxesRangeHistory(), and yMinMaxOnXAxisCurrentRange().

◆ hideSelectionRectangle()

void pappso::BasePlotWidget::hideSelectionRectangle ( bool reset_values = false )

virtual

Definition at line 3158 of file baseplotwidget.cpp.

{
  mp_selectionRectangeLine1->setVisible(false);
  mp_selectionRectangeLine2->setVisible(false);
  mp_selectionRectangeLine3->setVisible(false);
  mp_selectionRectangeLine4->setVisible(false);

  if(reset_values)
    {
      resetSelectionRectangle();
    }
}

References mp_selectionRectangeLine1, mp_selectionRectangeLine2, mp_selectionRectangeLine3, mp_selectionRectangeLine4, and resetSelectionRectangle().

Referenced by hideAllPlotItems(), mouseReleaseHandlerLeftButton(), mouseReleaseHandlerRightButton(), and yMinMaxOnXAxisCurrentRange().

◆ hideTracers()

void pappso::BasePlotWidget::hideTracers ( )

virtual

Hide the traces (vertical and horizontal).

Definition at line 2266 of file baseplotwidget.cpp.

{
  m_shouldTracersBeVisible = false;
  mp_hPosTracerItem->setVisible(false);
  mp_vPosTracerItem->setVisible(false);

  mp_vStartTracerItem->setVisible(false);
  mp_vEndTracerItem->setVisible(false);

  // Force a replot to make sure the action is immediately visible by the
  // user, even without moving the mouse.
  replot();
}

References m_shouldTracersBeVisible, mp_hPosTracerItem, mp_vEndTracerItem, mp_vPosTracerItem, and mp_vStartTracerItem.

Referenced by keyReleaseEvent(), and yMinMaxOnXAxisCurrentRange().

◆ horizontalGetGraphCoordNewPointCountPixels()

QPointF pappso::BasePlotWidget::horizontalGetGraphCoordNewPointCountPixels ( int pixel_count )

virtual

Definition at line 1829 of file baseplotwidget.cpp.

{
  QPointF pixel_coordinates(xAxis->coordToPixel(m_context.m_lastCursorHoveredPoint.x()) +
                              pixel_count,
                            yAxis->coordToPixel(m_context.m_lastCursorHoveredPoint.y()));

  // Now convert back to local coordinates.

  QPointF graph_coordinates(xAxis->pixelToCoord(pixel_coordinates.x()),
                            yAxis->pixelToCoord(pixel_coordinates.y()));

  return graph_coordinates;
}

References m_context.

Referenced by horizontalMoveMouseCursorCountPixels().

◆ horizontalMoveMouseCursorCountPixels()

void pappso::BasePlotWidget::horizontalMoveMouseCursorCountPixels ( int pixel_count )

virtual

Definition at line 1814 of file baseplotwidget.cpp.

{
  QPointF graph_coord = horizontalGetGraphCoordNewPointCountPixels(pixel_count);

  QPointF pixel_coord(xAxis->coordToPixel(graph_coord.x()), yAxis->coordToPixel(graph_coord.y()));

  // Now we need ton convert the new coordinates to the global position system
  // and to move the cursor to that new position. That will create an event to
  // move the mouse cursor.

  moveMouseCursorPixelCoordToGlobal(pixel_coord.toPoint());
}

References horizontalGetGraphCoordNewPointCountPixels(), and moveMouseCursorPixelCoordToGlobal().

Referenced by directionKeyPressEvent().

◆ integrationRequestedSignal

void pappso::BasePlotWidget::integrationRequestedSignal ( const BasePlotContext & context )

signal

Referenced by mouseReleaseHandlerRightButton().

◆ isClickOntoXAxis()

bool pappso::BasePlotWidget::isClickOntoXAxis ( const QPointF & mousePoint )

Definition at line 1716 of file baseplotwidget.cpp.

{
  QCPLayoutElement *layoutElement = layoutElementAt(mousePoint);

  if(layoutElement && layoutElement == dynamic_cast<QCPLayoutElement *>(axisRect()))
    {
      // The graph is *inside* the axisRect that is the outermost envelope of
      // the graph. Thus, if we want to know if the click was indeed on an
      // axis, we need to check what selectable part of the the axisRect we
      // were clicking:
      QCPAxis::SelectablePart selectablePart;

      selectablePart = xAxis->getPartAt(mousePoint);

      if(selectablePart == QCPAxis::spAxisLabel || selectablePart == QCPAxis::spAxis ||
         selectablePart == QCPAxis::spTickLabels)
        return true;
    }

  return false;
}

Referenced by mousePressHandler().

◆ isClickOntoYAxis()

bool pappso::BasePlotWidget::isClickOntoYAxis ( const QPointF & mousePoint )

Definition at line 1740 of file baseplotwidget.cpp.

{
  QCPLayoutElement *layoutElement = layoutElementAt(mousePoint);

  if(layoutElement && layoutElement == dynamic_cast<QCPLayoutElement *>(axisRect()))
    {
      // The graph is *inside* the axisRect that is the outermost envelope of
      // the graph. Thus, if we want to know if the click was indeed on an
      // axis, we need to check what selectable part of the the axisRect we
      // were clicking:
      QCPAxis::SelectablePart selectablePart;

      selectablePart = yAxis->getPartAt(mousePoint);

      if(selectablePart == QCPAxis::spAxisLabel || selectablePart == QCPAxis::spAxis ||
         selectablePart == QCPAxis::spTickLabels)
        return true;
    }

  return false;
}

Referenced by mousePressHandler().

◆ isSelectionRectangleVisible()

bool pappso::BasePlotWidget::isSelectionRectangleVisible ( )

virtual

Definition at line 3218 of file baseplotwidget.cpp.

{
  // Sanity check
  int check = 0;

  check += mp_selectionRectangeLine1->visible();
  check += mp_selectionRectangeLine2->visible();
  check += mp_selectionRectangeLine3->visible();
  check += mp_selectionRectangeLine4->visible();

  if(check > 0)
    return true;

  return false;
}

References mp_selectionRectangeLine1, mp_selectionRectangeLine2, mp_selectionRectangeLine3, and mp_selectionRectangeLine4.

Referenced by yMinMaxOnXAxisCurrentRange().

◆ isVerticalDisplacementAboveThreshold()

bool pappso::BasePlotWidget::isVerticalDisplacementAboveThreshold ( )

virtual

Definition at line 2575 of file baseplotwidget.cpp.

{
  // First get the height of the plot.
  double plotHeight = yAxis->range().upper - yAxis->range().lower;

  double heightDiff = fabs(m_context.m_startDragPoint.y() - m_context.m_currentDragPoint.y());

  double heightDiffRatio = (heightDiff / plotHeight) * 100;

  if(heightDiffRatio > 10)
    {
      return true;
    }

  return false;
}

References m_context.

Referenced by keyReleaseEvent(), mouseMoveHandlerLeftButtonDraggingCursor(), mouseMoveHandlerRightButtonDraggingCursor(), and yMinMaxOnXAxisCurrentRange().

◆ keyPressEvent()

void pappso::BasePlotWidget::keyPressEvent ( QKeyEvent * event )

virtual

KEYBOARD-related EVENTS.

Reimplemented in pappso::DriftSpecMassSpecColorMapPlotWidget, pappso::DriftSpecTracePlotWidget, pappso::MassSpecTracePlotWidget, pappso::TicXicChromDriftSpecColorMapPlotWidget, pappso::TicXicChromMassSpecColorMapPlotWidget, and pappso::TicXicChromTracePlotWidget.

Definition at line 607 of file baseplotwidget.cpp.

{
  // qDebug() << "ENTER";

  // We need this because some keys modify our behaviour.
  m_context.m_pressedKeyCode    = event->key();
  m_context.m_keyboardModifiers = QGuiApplication::queryKeyboardModifiers();

  if(event->key() == Qt::Key_Left || event->key() == Qt::Key_Right || event->key() == Qt::Key_Up ||
     event->key() == Qt::Key_Down)
    {
      return directionKeyPressEvent(event);
    }
  else if(event->key() == m_leftMousePseudoButtonKey || event->key() == m_rightMousePseudoButtonKey)
    {
      return mousePseudoButtonKeyPressEvent(event);
    }

  // Do not do anything here, because this function is used by derived classes
  // that will emit the signal below. Otherwise there are going to be multiple
  // signals sent.
  // qDebug() << "Going to emit keyPressEventSignal(m_context);";
  // emit keyPressEventSignal(m_context);
}

References directionKeyPressEvent(), m_context, m_leftMousePseudoButtonKey, m_rightMousePseudoButtonKey, and mousePseudoButtonKeyPressEvent().

Referenced by pappso::DriftSpecMassSpecColorMapPlotWidget::keyPressEvent(), pappso::DriftSpecTracePlotWidget::keyPressEvent(), pappso::MassSpecTracePlotWidget::keyPressEvent(), pappso::TicXicChromDriftSpecColorMapPlotWidget::keyPressEvent(), pappso::TicXicChromMassSpecColorMapPlotWidget::keyPressEvent(), and pappso::TicXicChromTracePlotWidget::keyPressEvent().

◆ keyPressEventSignal

void pappso::BasePlotWidget::keyPressEventSignal ( const BasePlotContext & context )

signal

Referenced by pappso::DriftSpecTracePlotWidget::keyPressEvent(), and pappso::TicXicChromTracePlotWidget::keyPressEvent().

◆ keyReleaseEvent()

void pappso::BasePlotWidget::keyReleaseEvent ( QKeyEvent * event )

virtual

Handle specific key codes and trigger respective actions.

Reimplemented in pappso::DriftSpecMassSpecColorMapPlotWidget, pappso::DriftSpecTracePlotWidget, pappso::MassSpecTracePlotWidget, pappso::TicXicChromDriftSpecColorMapPlotWidget, pappso::TicXicChromMassSpecColorMapPlotWidget, and pappso::TicXicChromTracePlotWidget.

Definition at line 635 of file baseplotwidget.cpp.

{
  m_context.m_releasedKeyCode = event->key();

  // The keyboard key is being released, set the key code to 0.
  m_context.m_pressedKeyCode = 0;

  m_context.m_keyboardModifiers = QGuiApplication::queryKeyboardModifiers();

  // Now test if the key that was released is one of the housekeeping keys.
  if(event->key() == Qt::Key_Backspace)
    {
      // qDebug();

      // The user wants to iterate back in the x/y axis range history.
      restorePreviousAxesRangeHistory();

      event->accept();
    }
  else if(event->key() == Qt::Key_Space)
    {
      return spaceKeyReleaseEvent(event);
    }
  else if(event->key() == Qt::Key_Delete)
    {
      // The user wants to delete a graph. What graph is to be determined
      // programmatically:

      // If there is a single graph, then that is the graph to be removed.
      // If there are more than one graph, then only the ones that are selected
      // are to be removed.

      // Note that the user of this widget might want to provide the user with
      // the ability to specify if all the children graph needs to be removed
      // also. This can be coded in key modifiers. So provide the context.

      int graph_count = plottableCount();

      if(!graph_count)
        {
          // qDebug() << "Not a single graph in the plot widget. Doing
          // nothing.";

          event->accept();
          return;
        }

      if(graph_count == 1)
        {
          // qDebug() << "A single graph is in the plot widget. Emitting a graph
          // " "destruction requested signal for it:"
          //<< graph();

          emit plottableDestructionRequestedSignal(this, graph(), m_context);
        }
      else
        {
          // At this point we know there are more than one graph in the plot
          // widget. We need to get the selected one (if any).
          QList<QCPGraph *> selected_graph_list;

          selected_graph_list = selectedGraphs();

          if(!selected_graph_list.size())
            {
              event->accept();
              return;
            }

          // qDebug() << "Number of selected graphs to be destrobyed:"
          //<< selected_graph_list.size();

          for(int iter = 0; iter < selected_graph_list.size(); ++iter)
            {
              // qDebug()
              //<< "Emitting a graph destruction requested signal for graph:"
              //<< selected_graph_list.at(iter);

              emit plottableDestructionRequestedSignal(
                this, selected_graph_list.at(iter), m_context);

              // We do not do this, because we want the slot called by the
              // signal above to handle that removal. Remember that it is not
              // possible to delete graphs manually.
              //
              // removeGraph(selected_graph_list.at(iter));
            }
          event->accept();
        }
    }
  // End of
  // else if(event->key() == Qt::Key_Delete)
  else if(event->key() == Qt::Key_T)
    {
      // The user wants to toggle the visibiity of the tracers.
      m_shouldTracersBeVisible = !m_shouldTracersBeVisible;

      if(!m_shouldTracersBeVisible)
        hideTracers();
      else
        showTracers();

      event->accept();
    }
  else if(event->key() == Qt::Key_Left || event->key() == Qt::Key_Right ||
          event->key() == Qt::Key_Up || event->key() == Qt::Key_Down)
    {
      return directionKeyReleaseEvent(event);
    }
  else if(event->key() == m_leftMousePseudoButtonKey || event->key() == m_rightMousePseudoButtonKey)
    {
      return mousePseudoButtonKeyReleaseEvent(event);
    }
  else if(event->key() == Qt::Key_S)
    {
      // The user is defining the size of the rhomboid fixed side. That could be
      // either a vertical side (less intuitive) or a horizontal size (more
      // intuitive, first exclusive implementation). But, in order to be able to
      // perform identical integrations starting from non-transposed color maps
      // and transposed color maps, the ability to define a vertical fixed size
      // side of the rhomboid integration scope has become necessary.

      // Check if the vertical displacement is significant (>= 10% of the color
      // map height.

      if(isVerticalDisplacementAboveThreshold())
        {
          // The user is dragging the cursor vertically in a sufficient delta to
          // consider that they are willing to define a vertical fixed size
          // of the rhomboid integration scope.

          m_context.m_integrationScopeRhombWidth = 0;
          m_context.m_integrationScopeRhombHeight =
            abs(m_context.m_currentDragPoint.y() - m_context.m_startDragPoint.y());

          // qDebug() << "Set m_context.m_integrationScopePolyHeight to"
          //          << m_context.m_integrationScopeRhombHeight
          //          << "upon release of S key";
        }
      else
        {
          // The user is dragging the cursor horiontally  to define a horizontal
          // fixed size of the rhomboid integration scope.

          m_context.m_integrationScopeRhombWidth =
            abs(m_context.m_currentDragPoint.x() - m_context.m_startDragPoint.x());
          m_context.m_integrationScopeRhombHeight = 0;

          // qDebug() << "Set m_context.m_integrationScopePolyWidth to"
          //          << m_context.m_integrationScopeRhombWidth
          //          << "upon release of S key";
        }
    }
  // At this point emit the signal, since we did not treat it. Maybe the
  // consumer widget wants to know that the keyboard key was released.

  emit keyReleaseEventSignal(m_context);
}

References directionKeyReleaseEvent(), hideTracers(), isVerticalDisplacementAboveThreshold(), keyReleaseEventSignal(), m_context, m_leftMousePseudoButtonKey, m_rightMousePseudoButtonKey, m_shouldTracersBeVisible, mousePseudoButtonKeyReleaseEvent(), plottableDestructionRequestedSignal(), restorePreviousAxesRangeHistory(), showTracers(), and spaceKeyReleaseEvent().

Referenced by pappso::DriftSpecMassSpecColorMapPlotWidget::keyReleaseEvent(), pappso::DriftSpecTracePlotWidget::keyReleaseEvent(), pappso::MassSpecTracePlotWidget::keyReleaseEvent(), pappso::TicXicChromDriftSpecColorMapPlotWidget::keyReleaseEvent(), pappso::TicXicChromMassSpecColorMapPlotWidget::keyReleaseEvent(), and pappso::TicXicChromTracePlotWidget::keyReleaseEvent().

◆ keyReleaseEventSignal

void pappso::BasePlotWidget::keyReleaseEventSignal ( const BasePlotContext & context )

signal

Referenced by keyReleaseEvent().

◆ lastCursorHoveredPointSignal

void pappso::BasePlotWidget::lastCursorHoveredPointSignal ( const QPointF & pointf )

signal

Referenced by mouseMoveHandlerNotDraggingCursor().

◆ layerableLayerIndex()

int pappso::BasePlotWidget::layerableLayerIndex ( QCPLayerable * layerable_p ) const

protectedvirtual

Definition at line 203 of file baseplotwidget.cpp.

{
  if(layerable_p == nullptr)
    qFatal("Programming error.");

  QCPLayer *layer_p = layerable_p->layer();

  for(int iter = 0; iter < layerCount(); ++iter)
    {
      if(layer(iter) == layer_p)
        return iter;
    }

  return -1;
}

◆ layerableLayerName()

QString pappso::BasePlotWidget::layerableLayerName ( QCPLayerable * layerable_p ) const

protectedvirtual

Definition at line 191 of file baseplotwidget.cpp.

{
  if(layerable_p == nullptr)
    qFatal("Programming error.");

  QCPLayer *layer_p = layerable_p->layer();

  return layer_p->name();
}

◆ mouseMoveHandler()

void pappso::BasePlotWidget::mouseMoveHandler ( QMouseEvent * event )

virtual

KEYBOARD-related EVENTS.

MOUSE-related EVENTS

Reimplemented in pappso::DriftSpecMassSpecColorMapPlotWidget, pappso::DriftSpecTracePlotWidget, pappso::MassSpecTracePlotWidget, pappso::TicXicChromDriftSpecColorMapPlotWidget, pappso::TicXicChromMassSpecColorMapPlotWidget, and pappso::TicXicChromTracePlotWidget.

Definition at line 923 of file baseplotwidget.cpp.

{

  // If we have no focus, then get it. See setFocus() to understand why asking
  // for focus is cosly and thus why we want to make this decision first.
  if(!hasFocus())
    setFocus();

  // qDebug() << (graph() != nullptr);
  // if(graph(0) != nullptr)
  //  { // check if the widget contains some graphs

  // The event->button() must be by Qt instructions considered to be 0.

  // Whatever happens, we want to store the plot coordinates of the current
  // mouse cursor position (will be useful later for countless needs).

  // Fix from Qt5 to Qt6
#if QT_VERSION < 0x060000
  QPointF mousePoint = event->localPos();
#else
  QPointF mousePoint = event->position();
#endif
  // qDebug() << "local mousePoint position in pixels:" << mousePoint;

  m_context.m_lastCursorHoveredPoint.setX(xAxis->pixelToCoord(mousePoint.x()));
  m_context.m_lastCursorHoveredPoint.setY(yAxis->pixelToCoord(mousePoint.y()));

  // qDebug() << "lastCursorHoveredPoint coord:"
  //<< m_context.m_lastCursorHoveredPoint;

  // Now, depending on the button(s) (if any) that are pressed or not, we
  // have a different processing.

  // qDebug();

  if(m_context.m_pressedMouseButtons & Qt::LeftButton ||
     m_context.m_pressedMouseButtons & Qt::RightButton)
    mouseMoveHandlerDraggingCursor();
  else
    mouseMoveHandlerNotDraggingCursor();
  //  }
  // qDebug();
  event->accept();
}

References m_context, mouseMoveHandlerDraggingCursor(), mouseMoveHandlerNotDraggingCursor(), and setFocus().

Referenced by pappso::DriftSpecMassSpecColorMapPlotWidget::mouseMoveHandler(), pappso::DriftSpecTracePlotWidget::mouseMoveHandler(), pappso::MassSpecTracePlotWidget::mouseMoveHandler(), pappso::TicXicChromDriftSpecColorMapPlotWidget::mouseMoveHandler(), pappso::TicXicChromMassSpecColorMapPlotWidget::mouseMoveHandler(), pappso::TicXicChromTracePlotWidget::mouseMoveHandler(), and setupWidget().

◆ mouseMoveHandlerDraggingCursor()

void pappso::BasePlotWidget::mouseMoveHandlerDraggingCursor ( )

virtual

Reimplemented in pappso::DriftSpecMassSpecColorMapPlotWidget, pappso::DriftSpecTracePlotWidget, pappso::MassSpecTracePlotWidget, pappso::TicXicChromDriftSpecColorMapPlotWidget, pappso::TicXicChromMassSpecColorMapPlotWidget, and pappso::TicXicChromTracePlotWidget.

Definition at line 1035 of file baseplotwidget.cpp.

{
  // qDebug();
  m_context.m_isMouseDragging = true;

  // Now store the mouse position data into the the current drag point
  // member datum, that will be used in countless occasions later.
  m_context.m_currentDragPoint  = m_context.m_lastCursorHoveredPoint;
  m_context.m_keyboardModifiers = QGuiApplication::queryKeyboardModifiers();

  // When we drag (either keyboard or mouse), we hide the position markers
  // (black) and we show the start and end vertical markers for the region.
  // Then, we draw the horizontal region range marker that delimits
  // horizontally the dragged-over region.

  if(mp_hPosTracerItem != nullptr)
    mp_hPosTracerItem->setVisible(false);
  if(mp_vPosTracerItem != nullptr)
    mp_vPosTracerItem->setVisible(false);

  // Only bother with the tracers if the user wants them to be visible.
  if(m_shouldTracersBeVisible && (mp_vEndTracerItem != nullptr))
    {

      // The vertical end tracer position must be refreshed.
      mp_vEndTracerItem->start->setCoords(m_context.m_currentDragPoint.x(), yAxis->range().upper);

      mp_vEndTracerItem->end->setCoords(m_context.m_currentDragPoint.x(), yAxis->range().lower);

      mp_vEndTracerItem->setVisible(true);
    }

  // Whatever the button, when we are dealing with the axes, we do not
  // want to show any of the tracers.

  if(m_context.m_wasClickOnXAxis || m_context.m_wasClickOnYAxis)
    {
      if(mp_hPosTracerItem != nullptr)
        mp_hPosTracerItem->setVisible(false);
      if(mp_vPosTracerItem != nullptr)
        mp_vPosTracerItem->setVisible(false);

      if(mp_vStartTracerItem != nullptr)
        mp_vStartTracerItem->setVisible(false);
      if(mp_vEndTracerItem != nullptr)
        mp_vEndTracerItem->setVisible(false);
    }
  else
    {
      // Since we are not dragging the mouse cursor over the axes, make sure
      // we store the drag directions in the context, as this might be
      // useful for later operations.

      m_context.recordDragDirections();

      // qDebug() << m_context.toString();
    }

  // Because when we drag the mouse button (whatever the button) we need to
  // know what is the drag delta (distance between start point and current
  // point of the drag operation) on both axes, ask that these x|y deltas be
  // computed.
  calculateDragDeltas();

  // Now deal with the BUTTON-SPECIFIC CODE.

  if(m_context.m_mouseButtonsAtMousePress & Qt::LeftButton)
    {
      return mouseMoveHandlerLeftButtonDraggingCursor();
    }
  else if(m_context.m_mouseButtonsAtMousePress & Qt::RightButton)
    {
      return mouseMoveHandlerRightButtonDraggingCursor();
    }
}

References calculateDragDeltas(), m_context, m_shouldTracersBeVisible, mouseMoveHandlerLeftButtonDraggingCursor(), mouseMoveHandlerRightButtonDraggingCursor(), mp_hPosTracerItem, mp_vEndTracerItem, mp_vPosTracerItem, and mp_vStartTracerItem.

Referenced by mouseMoveHandler(), pappso::DriftSpecMassSpecColorMapPlotWidget::mouseMoveHandlerDraggingCursor(), pappso::DriftSpecTracePlotWidget::mouseMoveHandlerDraggingCursor(), pappso::MassSpecTracePlotWidget::mouseMoveHandlerDraggingCursor(), pappso::TicXicChromDriftSpecColorMapPlotWidget::mouseMoveHandlerDraggingCursor(), pappso::TicXicChromMassSpecColorMapPlotWidget::mouseMoveHandlerDraggingCursor(), and pappso::TicXicChromTracePlotWidget::mouseMoveHandlerDraggingCursor().

◆ mouseMoveHandlerLeftButtonDraggingCursor()

void pappso::BasePlotWidget::mouseMoveHandlerLeftButtonDraggingCursor ( )

virtual

Definition at line 1113 of file baseplotwidget.cpp.

{
  // qDebug() << "The left button is dragging.";

  // Set the context.m_isMeasuringDistance to false, which later might be set
  // to true if effectively we are measuring a distance. This is required
  // because the derived widget classes might want to know if they have to
  // perform some action on the basis that context is measuring a distance,
  // for example the mass spectrum-specific widget might want to compute
  // deconvolutions.

  m_context.m_isMeasuringDistance = false;

  // Let's first check if the mouse drag operation originated on either
  // axis. In that case, the user is performing axis reframing or rescaling.

  if(m_context.m_wasClickOnXAxis || m_context.m_wasClickOnYAxis)
    {
      // qDebug() << "Click was on one of the axes.";

      if(m_context.m_keyboardModifiers & Qt::ControlModifier)
        {
          // The user is asking a rescale of the plot.

          // We know that we do not want the tracers when we perform axis
          // rescaling operations.

          if(mp_hPosTracerItem != nullptr)
            mp_hPosTracerItem->setVisible(false);
          if(mp_vPosTracerItem != nullptr)
            mp_vPosTracerItem->setVisible(false);

          if(mp_vStartTracerItem != nullptr)
            mp_vStartTracerItem->setVisible(false);
          if(mp_vEndTracerItem != nullptr)
            mp_vEndTracerItem->setVisible(false);

          // This operation is particularly intensive, thus we want to
          // reduce the number of calculations by skipping this calculation
          // a number of times. The user can ask for this feature by
          // clicking the 'Q' letter.

          if(m_context.m_pressedKeyCode == Qt::Key_Q)
            {
              if(m_mouseMoveHandlerSkipCount < m_mouseMoveHandlerSkipAmount)
                {
                  m_mouseMoveHandlerSkipCount++;
                  return;
                }
              else
                {
                  m_mouseMoveHandlerSkipCount = 0;
                }
            }

          // qDebug() << "Asking that the axes be rescaled.";

          axisRescale();
        }
      else
        {
          // The user was simply dragging the axis. Just pan, that is slide
          // the plot in the same direction as the mouse movement and with the
          // same amplitude.

          // qDebug() << "Asking that the axes be panned.";

          axisPan();
        }

      return;
    }

  // At this point we understand that the user was not performing any
  // panning/rescaling operation by clicking on any one of the axes.. Go on
  // with other possibilities.

  // Let's check if the user is actually drawing a rectangle (covering a
  // real area) or is drawing a line.

  // qDebug() << "The mouse dragging did not originate on an axis.";

  if(isVerticalDisplacementAboveThreshold())
    {
      // qDebug() << "Apparently the selection is two-dimensional.";

      // When we draw a two-dimensional integration scope, the tracers are of no
      // use.

      if(mp_hPosTracerItem != nullptr)
        mp_hPosTracerItem->setVisible(false);
      if(mp_vPosTracerItem != nullptr)
        mp_vPosTracerItem->setVisible(false);

      if(mp_vStartTracerItem != nullptr)
        mp_vStartTracerItem->setVisible(false);
      if(mp_vEndTracerItem != nullptr)
        mp_vEndTracerItem->setVisible(false);

      // Draw the rectangle,  false, not as line segment and
      // false, not for integration
      drawSelectionRectangleAndPrepareZoom(false, false);

      // Draw the selection width/height text
      drawXScopeSpanFeatures();
      drawYScopeSpanFeatures();
    }
  else
    {
      // qDebug() << "Apparently we are measuring a delta.";

      // Draw the rectangle, true, as line segment and
      // false, not for integration
      drawSelectionRectangleAndPrepareZoom(true, false);

      // The pure position tracers should be hidden.
      if(mp_hPosTracerItem != nullptr)
        mp_hPosTracerItem->setVisible(true);
      if(mp_vPosTracerItem != nullptr)
        mp_vPosTracerItem->setVisible(true);

      // Then, make sure the region range vertical tracers are visible.
      if(mp_vStartTracerItem != nullptr)
        mp_vStartTracerItem->setVisible(true);
      if(mp_vEndTracerItem != nullptr)
        mp_vEndTracerItem->setVisible(true);

      // Draw the selection width text
      drawXScopeSpanFeatures();
    }
}

References axisPan(), axisRescale(), drawSelectionRectangleAndPrepareZoom(), drawXScopeSpanFeatures(), drawYScopeSpanFeatures(), isVerticalDisplacementAboveThreshold(), m_context, m_mouseMoveHandlerSkipAmount, m_mouseMoveHandlerSkipCount, mp_hPosTracerItem, mp_vEndTracerItem, mp_vPosTracerItem, and mp_vStartTracerItem.

Referenced by mouseMoveHandlerDraggingCursor().

◆ mouseMoveHandlerNotDraggingCursor()

void pappso::BasePlotWidget::mouseMoveHandlerNotDraggingCursor ( )

virtual

Reimplemented in pappso::DriftSpecMassSpecColorMapPlotWidget, pappso::DriftSpecTracePlotWidget, pappso::MassSpecTracePlotWidget, pappso::TicXicChromDriftSpecColorMapPlotWidget, pappso::TicXicChromMassSpecColorMapPlotWidget, and pappso::TicXicChromTracePlotWidget.

Definition at line 971 of file baseplotwidget.cpp.

{

  // qDebug();
  m_context.m_isMouseDragging = false;

  // qDebug();
  // We are not dragging the mouse (no button pressed), simply let this
  // widget's consumer know the position of the cursor and update the markers.
  // The consumer of this widget will update mouse cursor position at
  // m_context.m_lastCursorHoveredPoint if so needed.

  emit lastCursorHoveredPointSignal(m_context.m_lastCursorHoveredPoint);

  // qDebug();

  // We are not dragging, so we do not show the region end tracer we only
  // show the anchoring start trace that might be of use if the user starts
  // using the arrow keys to move the cursor.
  if(mp_vEndTracerItem != nullptr)
    mp_vEndTracerItem->setVisible(false);

  // qDebug();
  // Only bother with the tracers if the user wants them to be visible.
  // Their crossing point must be exactly at the last cursor-hovered point.

  if(m_shouldTracersBeVisible)
    {
      // We are not dragging, so only show the position markers (v and h);

      // qDebug();
      if(mp_hPosTracerItem != nullptr)
        {
          // Horizontal position tracer.
          mp_hPosTracerItem->setVisible(true);
          mp_hPosTracerItem->start->setCoords(xAxis->range().lower,
                                              m_context.m_lastCursorHoveredPoint.y());
          mp_hPosTracerItem->end->setCoords(xAxis->range().upper,
                                            m_context.m_lastCursorHoveredPoint.y());
        }

      // qDebug();
      // Vertical position tracer.
      if(mp_vPosTracerItem != nullptr)
        {
          mp_vPosTracerItem->setVisible(true);

          mp_vPosTracerItem->setVisible(true);
          mp_vPosTracerItem->start->setCoords(m_context.m_lastCursorHoveredPoint.x(),
                                              yAxis->range().upper);
          mp_vPosTracerItem->end->setCoords(m_context.m_lastCursorHoveredPoint.x(),
                                            yAxis->range().lower);
        }

      // qDebug();
      replot();
    }


  return;
}

References lastCursorHoveredPointSignal(), m_context, m_shouldTracersBeVisible, mp_hPosTracerItem, mp_vEndTracerItem, and mp_vPosTracerItem.

Referenced by mouseMoveHandler(), pappso::DriftSpecMassSpecColorMapPlotWidget::mouseMoveHandlerNotDraggingCursor(), pappso::DriftSpecTracePlotWidget::mouseMoveHandlerNotDraggingCursor(), pappso::MassSpecTracePlotWidget::mouseMoveHandlerNotDraggingCursor(), pappso::TicXicChromDriftSpecColorMapPlotWidget::mouseMoveHandlerNotDraggingCursor(), pappso::TicXicChromMassSpecColorMapPlotWidget::mouseMoveHandlerNotDraggingCursor(), and pappso::TicXicChromTracePlotWidget::mouseMoveHandlerNotDraggingCursor().

◆ mouseMoveHandlerRightButtonDraggingCursor()

void pappso::BasePlotWidget::mouseMoveHandlerRightButtonDraggingCursor ( )

virtual

Definition at line 1247 of file baseplotwidget.cpp.

{
  // qDebug() << "The right button is dragging.";

  // Set the context.m_isMeasuringDistance to false, which later might be set
  // to true if effectively we are measuring a distance. This is required
  // because the derived widgets might want to know if they have to perform
  // some action on the basis that context is measuring a distance, for
  // example the mass spectrum-specific widget might want to compute
  // deconvolutions.

  m_context.m_isMeasuringDistance = false;

  if(isVerticalDisplacementAboveThreshold())
    {
      // qDebug() << "Apparently the selection has height.";

      // When we draw a rectangle the tracers are of no use.

      if(mp_hPosTracerItem != nullptr)
        mp_hPosTracerItem->setVisible(false);
      if(mp_vPosTracerItem != nullptr)
        mp_vPosTracerItem->setVisible(false);

      if(mp_vStartTracerItem != nullptr)
        mp_vStartTracerItem->setVisible(false);
      if(mp_vEndTracerItem != nullptr)
        mp_vEndTracerItem->setVisible(false);

      // Draw the rectangle, false for as_line_segment and true for
      // integration.
      drawSelectionRectangleAndPrepareZoom(false, true);

      // Draw the selection width/height text
      drawXScopeSpanFeatures();
      drawYScopeSpanFeatures();
    }
  else
    {
      // qDebug() << "Apparently the selection is a not a rectangle.";

      // Draw the rectangle, true as line segment and
      // true for integration
      drawSelectionRectangleAndPrepareZoom(true, true);

      // Draw the selection width text
      drawXScopeSpanFeatures();
    }
}

References drawSelectionRectangleAndPrepareZoom(), drawXScopeSpanFeatures(), drawYScopeSpanFeatures(), isVerticalDisplacementAboveThreshold(), m_context, mp_hPosTracerItem, mp_vEndTracerItem, mp_vPosTracerItem, and mp_vStartTracerItem.

Referenced by mouseMoveHandlerDraggingCursor().

◆ mousePressEventSignal

void pappso::BasePlotWidget::mousePressEventSignal ( const BasePlotContext & context )

signal

Referenced by mousePressHandler().

◆ mousePressHandler()

void pappso::BasePlotWidget::mousePressHandler ( QMouseEvent * event )

virtual

KEYBOARD-related EVENTS.

MOUSE-related EVENTS

Reimplemented in pappso::DriftSpecMassSpecColorMapPlotWidget, pappso::DriftSpecTracePlotWidget, pappso::MassSpecTracePlotWidget, pappso::TicXicChromDriftSpecColorMapPlotWidget, pappso::TicXicChromMassSpecColorMapPlotWidget, and pappso::TicXicChromTracePlotWidget.

Definition at line 1299 of file baseplotwidget.cpp.

{
  // qDebug() << "Entering";

  // When the user clicks this widget it has to take focus.
  setFocus();

  // Fix from Qt5 to Qt6
  // QPointF mousePoint = event->localPos();

#if QT_VERSION < 0x060000
  QPointF mousePoint = event->localPos();
#else
  QPointF mousePoint = event->position();
#endif

  m_context.m_lastPressedMouseButton   = event->button();
  m_context.m_mouseButtonsAtMousePress = event->buttons();

  // The pressedMouseButtons must continually inform on the status of
  // pressed buttons so add the pressed button.
  m_context.m_pressedMouseButtons |= event->button();

  // qDebug().noquote() << m_context.toString();

  // In all the processing of the events, we need to know if the user is
  // clicking somewhere with the intent to change the plot ranges (reframing
  // or rescaling the plot).
  //
  // Reframing the plot means that the new x and y axes ranges are modified
  // so that they match the region that the user has encompassed by left
  // clicking the mouse and dragging it over the plot. That is we reframe
  // the plot so that it contains only the "selected" region.
  //
  // Rescaling the plot means the the new x|y axis range is modified such
  // that the lower axis range is constant and the upper axis range is moved
  // either left or right by the same amont as the x|y delta encompassed by
  // the user moving the mouse. The axis is thus either compressed (mouse
  // movement is leftwards) or un-compressed (mouse movement is rightwards).

  // There are two ways to perform axis range modifications:
  //
  // 1. By clicking on any of the axes
  // 2. By clicking on the plot region but using keyboard key modifiers,
  // like Alt and Ctrl.
  //
  // We need to know both cases separately which is why we need to perform a
  // number of tests below.

  // Let's check if the click is on the axes, either X or Y, because that
  // will allow us to take proper actions.

  if(isClickOntoXAxis(mousePoint))
    {
      // The X axis was clicked upon, we need to document that:
      // qDebug() << __FILE__ << __LINE__
      //<< "Layout element is axisRect and actually on an X axis part.";

      m_context.m_wasClickOnXAxis = true;

      // int currentInteractions = interactions();
      // currentInteractions |= QCP::iRangeDrag;
      // setInteractions((QCP::Interaction)currentInteractions);
      // axisRect()->setRangeDrag(xAxis->orientation());
    }
  else
    m_context.m_wasClickOnXAxis = false;

  if(isClickOntoYAxis(mousePoint))
    {
      // The Y axis was clicked upon, we need to document that:
      // qDebug() << __FILE__ << __LINE__
      //<< "Layout element is axisRect and actually on an Y axis part.";

      m_context.m_wasClickOnYAxis = true;

      // int currentInteractions = interactions();
      // currentInteractions |= QCP::iRangeDrag;
      // setInteractions((QCP::Interaction)currentInteractions);
      // axisRect()->setRangeDrag(yAxis->orientation());
    }
  else
    m_context.m_wasClickOnYAxis = false;

  // At this point, let's see if we need to remove the QCP::iRangeDrag bit:

  if(!m_context.m_wasClickOnXAxis && !m_context.m_wasClickOnYAxis)
    {
      // qDebug() << __FILE__ << __LINE__
      // << "Click outside of axes.";

      // int currentInteractions = interactions();
      // currentInteractions     = currentInteractions & ~QCP::iRangeDrag;
      // setInteractions((QCP::Interaction)currentInteractions);
    }

  m_context.m_startDragPoint.setX(xAxis->pixelToCoord(mousePoint.x()));
  m_context.m_startDragPoint.setY(yAxis->pixelToCoord(mousePoint.y()));

  // Now install the vertical start tracer at the last cursor hovered
  // position.
  if((m_shouldTracersBeVisible) && (mp_vStartTracerItem != nullptr))
    mp_vStartTracerItem->setVisible(true);

  if(mp_vStartTracerItem != nullptr)
    {
      mp_vStartTracerItem->start->setCoords(m_context.m_lastCursorHoveredPoint.x(),
                                            yAxis->range().upper);
      mp_vStartTracerItem->end->setCoords(m_context.m_lastCursorHoveredPoint.x(),
                                          yAxis->range().lower);
    }

  replot();

  emit mousePressEventSignal(m_context);

  // qDebug() << "Exiting after having emitted mousePressEventSignal with base context:"
  // << m_context.toString();
}

References isClickOntoXAxis(), isClickOntoYAxis(), m_context, m_shouldTracersBeVisible, mousePressEventSignal(), mp_vStartTracerItem, and setFocus().

Referenced by pappso::DriftSpecMassSpecColorMapPlotWidget::mousePressHandler(), pappso::DriftSpecTracePlotWidget::mousePressHandler(), pappso::MassSpecTracePlotWidget::mousePressHandler(), pappso::TicXicChromDriftSpecColorMapPlotWidget::mousePressHandler(), pappso::TicXicChromMassSpecColorMapPlotWidget::mousePressHandler(), pappso::TicXicChromTracePlotWidget::mousePressHandler(), mousePseudoButtonKeyReleaseEvent(), and setupWidget().

◆ mousePseudoButtonKeyPressEvent()

void pappso::BasePlotWidget::mousePseudoButtonKeyPressEvent ( QKeyEvent * event )

virtual

Definition at line 853 of file baseplotwidget.cpp.

{
  // qDebug();
}

Referenced by keyPressEvent().

◆ mousePseudoButtonKeyReleaseEvent()

void pappso::BasePlotWidget::mousePseudoButtonKeyReleaseEvent ( QKeyEvent * event )

virtual

Definition at line 860 of file baseplotwidget.cpp.

{

  QPointF pixel_coordinates(xAxis->coordToPixel(m_context.m_lastCursorHoveredPoint.x()),
                            yAxis->coordToPixel(m_context.m_lastCursorHoveredPoint.y()));

  Qt::MouseButton button    = Qt::NoButton;
  QEvent::Type q_event_type = QEvent::MouseButtonPress;

  if(event->key() == m_leftMousePseudoButtonKey)
    {
      // Toggles the left mouse button on/off

      button = Qt::LeftButton;

      m_context.m_isLeftPseudoButtonKeyPressed = !m_context.m_isLeftPseudoButtonKeyPressed;

      if(m_context.m_isLeftPseudoButtonKeyPressed)
        q_event_type = QEvent::MouseButtonPress;
      else
        q_event_type = QEvent::MouseButtonRelease;
    }
  else if(event->key() == m_rightMousePseudoButtonKey)
    {
      // Toggles the right mouse button.

      button = Qt::RightButton;

      m_context.m_isRightPseudoButtonKeyPressed = !m_context.m_isRightPseudoButtonKeyPressed;

      if(m_context.m_isRightPseudoButtonKeyPressed)
        q_event_type = QEvent::MouseButtonPress;
      else
        q_event_type = QEvent::MouseButtonRelease;
    }

  // qDebug() << "pressed/released pseudo button:" << button
  //<< "q_event_type:" << q_event_type;

  // Synthesize a QMouseEvent and use it.

  QMouseEvent *mouse_event_p = new QMouseEvent(q_event_type,
                                               pixel_coordinates,
                                               mapToGlobal(pixel_coordinates.toPoint()),
                                               mapToGlobal(pixel_coordinates.toPoint()),
                                               button,
                                               button,
                                               m_context.m_keyboardModifiers,
                                               Qt::MouseEventSynthesizedByApplication);

  if(q_event_type == QEvent::MouseButtonPress)
    mousePressHandler(mouse_event_p);
  else
    mouseReleaseHandler(mouse_event_p);

  // event->accept();
}

References m_context, m_leftMousePseudoButtonKey, m_rightMousePseudoButtonKey, mousePressHandler(), and mouseReleaseHandler().

Referenced by keyReleaseEvent().

◆ mouseReleaseEventSignal

void pappso::BasePlotWidget::mouseReleaseEventSignal ( const BasePlotContext & context )

signal

Referenced by mouseReleaseHandler().

◆ mouseReleaseHandler()

void pappso::BasePlotWidget::mouseReleaseHandler ( QMouseEvent * event )

virtual

Reimplemented in pappso::DriftSpecMassSpecColorMapPlotWidget, pappso::DriftSpecTracePlotWidget, pappso::MassSpecTracePlotWidget, pappso::TicXicChromDriftSpecColorMapPlotWidget, pappso::TicXicChromMassSpecColorMapPlotWidget, and pappso::TicXicChromTracePlotWidget.

Definition at line 1421 of file baseplotwidget.cpp.

{
  // qDebug() << "Entering";

  // Now the real code of this function.

  m_context.m_lastReleasedMouseButton = event->button();

  // The event->buttons() is the description of the buttons that are pressed
  // at the moment the handler is invoked, that is now. If left and right were
  // pressed, and left was released, event->buttons() would be right.
  m_context.m_mouseButtonsAtMouseRelease = event->buttons();

  // The pressedMouseButtons must continually inform on the status of pressed
  // buttons so remove the released button.
  m_context.m_pressedMouseButtons ^= event->button();

  // qDebug().noquote() << m_context.toString();

  // We'll need to know if modifiers were pressed a the moment the user
  // released the mouse button.
  m_context.m_keyboardModifiers = QGuiApplication::keyboardModifiers();

  if(!m_context.m_isMouseDragging)
    {
      // Let the user know that the mouse was *not* being dragged.
      m_context.m_wasMouseDragging = false;

      event->accept();

      return;
    }

  // Let the user know that the mouse was being dragged.
  m_context.m_wasMouseDragging = true;

  // We cannot hide all items in one go because we rely on their visibility
  // to know what kind of dragging operation we need to perform (line-only
  // X-based zoom or rectangle-based X- and Y-based zoom, for example). The
  // only thing we know is that we can make the text invisible.

  // Same for the x delta text item
  mp_xDeltaTextItem->setVisible(false);
  mp_yDeltaTextItem->setVisible(false);

  // We do not show the end vertical region range marker.
  mp_vEndTracerItem->setVisible(false);

  // Horizontal position tracer.
  mp_hPosTracerItem->setVisible(true);
  mp_hPosTracerItem->start->setCoords(xAxis->range().lower, m_context.m_lastCursorHoveredPoint.y());
  mp_hPosTracerItem->end->setCoords(xAxis->range().upper, m_context.m_lastCursorHoveredPoint.y());

  // Vertical position tracer.
  mp_vPosTracerItem->setVisible(true);

  mp_vPosTracerItem->setVisible(true);
  mp_vPosTracerItem->start->setCoords(m_context.m_lastCursorHoveredPoint.x(), yAxis->range().upper);
  mp_vPosTracerItem->end->setCoords(m_context.m_lastCursorHoveredPoint.x(), yAxis->range().lower);

  // Force replot now because later that call might not be performed.
  replot();

  // If we were using the "quantum" display for the rescale of the axes
  // using the Ctrl-modified left button click drag in the axes, then reset
  // the count to 0.
  m_mouseMoveHandlerSkipCount = 0;

  // By definition we are stopping the drag operation by releasing the mouse
  // button. Whatever that mouse button was pressed before and if there was
  // one pressed before.  We cannot set that boolean value to false before
  // this place, because we call a number of routines above that need to know
  // that dragging was occurring. Like mouseReleaseHandledEvent(event) for
  // example.

  m_context.m_isMouseDragging = false;

  // Now that we have computed the useful ranges, we need to check what to do
  // depending on the button that was pressed.

  if(m_context.m_lastReleasedMouseButton == Qt::LeftButton)
    {
      return mouseReleaseHandlerLeftButton();
    }
  else if(m_context.m_lastReleasedMouseButton == Qt::RightButton)
    {
      return mouseReleaseHandlerRightButton();
    }

  event->accept();

  // Before returning, emit the signal for the user of
  // this class consumption.
  // qDebug() << "Emitting mouseReleaseEventSignal.";
  emit mouseReleaseEventSignal(m_context);

  // qDebug() << "Exiting after having emitted mouseReleaseEventSignal with base context:"
  //          << m_context.toString();

  return;
}

References m_context, m_mouseMoveHandlerSkipCount, mouseReleaseEventSignal(), mouseReleaseHandlerLeftButton(), mouseReleaseHandlerRightButton(), mp_hPosTracerItem, mp_vEndTracerItem, mp_vPosTracerItem, mp_xDeltaTextItem, and mp_yDeltaTextItem.

Referenced by mousePseudoButtonKeyReleaseEvent(), pappso::DriftSpecMassSpecColorMapPlotWidget::mouseReleaseHandler(), pappso::DriftSpecTracePlotWidget::mouseReleaseHandler(), pappso::MassSpecTracePlotWidget::mouseReleaseHandler(), pappso::TicXicChromDriftSpecColorMapPlotWidget::mouseReleaseHandler(), pappso::TicXicChromMassSpecColorMapPlotWidget::mouseReleaseHandler(), pappso::TicXicChromTracePlotWidget::mouseReleaseHandler(), and setupWidget().

◆ mouseReleaseHandlerLeftButton()

void pappso::BasePlotWidget::mouseReleaseHandlerLeftButton ( )

virtual

Definition at line 1525 of file baseplotwidget.cpp.

{
  // qDebug();

  if(m_context.m_wasClickOnXAxis || m_context.m_wasClickOnYAxis)
    {

      // When the mouse move handler pans the plot, we cannot store each axes
      // range history element that would mean store a huge amount of such
      // elements, as many element as there are mouse move event handled by
      // the Qt event queue. But we can store an axis range history element
      // for the last situation of the mouse move: when the button is
      // released:

      updateAxesRangeHistory();

      // qDebug() << "emit plotRangesChangedSignal(m_context);"

      emit plotRangesChangedSignal(m_context);

      replot();

      // Nothing else to do.
      return;
    }

  // There are two possibilities:
  //
  // 1. The full integration scope (four lines) were currently drawn, which
  // means the user was willing to perform a zoom operation.
  //
  // 2. Only the first top line was drawn, which means the user was dragging
  // the cursor horizontally. That might have two ends, as shown below.

  // So, first check what is drawn of the selection polygon.

  SelectionDrawingLines selection_drawing_lines = whatIsVisibleOfTheSelectionRectangle();

  // Now that we know what was currently drawn of the selection polygon, we
  // can remove it.  true to reset the values to 0.
  hideSelectionRectangle(true);

  // Force replot now because later that call might not be performed.
  replot();

  if(selection_drawing_lines == SelectionDrawingLines::FULL_POLYGON)
    {
      // qDebug() << "Yes, the full polygon was visible";

      // If we were dragging with the left button pressed and could draw a
      // rectangle, then we were preparing a zoom operation. Let's bring that
      // operation to its accomplishment.

      axisZoom();

      return;
    }
  else if(selection_drawing_lines == SelectionDrawingLines::TOP_LINE)
    {
      // qDebug() << "No, only the top line of the full polygon was visible";

      // The user was dragging the left mouse cursor and that may mean they
      // were measuring a distance or willing to perform a special zoom
      // operation if the Ctrl key was down.

      // If the user started by clicking in the plot region, dragged the mouse
      // cursor with the left button and pressed the Ctrl modifier, then that
      // means that they wanted to do a rescale over the x-axis in the form of
      // a reframing.

      if(m_context.m_keyboardModifiers & Qt::ControlModifier)
        {
          return axisReframe();
        }
    }
  // else
  // qDebug() << "Another possibility.";
}

References axisReframe(), axisZoom(), pappso::FULL_POLYGON, hideSelectionRectangle(), m_context, plotRangesChangedSignal(), pappso::TOP_LINE, updateAxesRangeHistory(), and whatIsVisibleOfTheSelectionRectangle().

Referenced by mouseReleaseHandler().

◆ mouseReleaseHandlerRightButton()

void pappso::BasePlotWidget::mouseReleaseHandlerRightButton ( )

virtual

Definition at line 1606 of file baseplotwidget.cpp.

{
  // qDebug();
  // The right button is used for the integrations. Not for axis range
  // operations. So all we have to do is remove the various graphics items and
  // send a signal with the context that contains all the data required by the
  // user to perform the integrations over the right plot regions.

  // Whatever we were doing we need to make the selection line invisible:

  if(mp_xDeltaTextItem->visible())
    mp_xDeltaTextItem->setVisible(false);
  if(mp_yDeltaTextItem->visible())
    mp_yDeltaTextItem->setVisible(false);

  // Also make the vertical end tracer invisible.
  mp_vEndTracerItem->setVisible(false);

  // Once the integration is asked for, then the selection rectangle if of no
  // more use.
  hideSelectionRectangle();

  // Force replot now because later that call might not be performed.
  replot();

  // Note that we only request an integration if the x-axis delta is enough.

  double x_delta_pixel = fabs(xAxis->coordToPixel(m_context.m_currentDragPoint.x()) -
                              xAxis->coordToPixel(m_context.m_startDragPoint.x()));

  if(x_delta_pixel > 3)
    {
      // qDebug() << "Emitting integrationRequestedSignal(m_context)";
      emit integrationRequestedSignal(m_context);
    }
  // else
  // qDebug() << "Not asking for integration.";
}

References hideSelectionRectangle(), integrationRequestedSignal(), m_context, mp_vEndTracerItem, mp_xDeltaTextItem, and mp_yDeltaTextItem.

Referenced by mouseReleaseHandler().

◆ mouseWheelEventSignal

void pappso::BasePlotWidget::mouseWheelEventSignal ( const BasePlotContext & context )

signal

Referenced by mouseWheelHandler().

◆ mouseWheelHandler()

void pappso::BasePlotWidget::mouseWheelHandler ( QWheelEvent * event )

virtual

Definition at line 1647 of file baseplotwidget.cpp.

{
  // We should record the new range values each time the wheel is used to
  // zoom/unzoom.

  m_context.m_xRange = QCPRange(xAxis->range());
  m_context.m_yRange = QCPRange(yAxis->range());

  // qDebug() << "New x range: " << m_context.m_xRange;
  // qDebug() << "New y range: " << m_context.m_yRange;

  updateAxesRangeHistory();

  emit plotRangesChangedSignal(m_context);
  emit mouseWheelEventSignal(m_context);

  event->accept();
}

References m_context, mouseWheelEventSignal(), plotRangesChangedSignal(), and updateAxesRangeHistory().

Referenced by setupWidget().

◆ moveMouseCursorGraphCoordToGlobal()

void pappso::BasePlotWidget::moveMouseCursorGraphCoordToGlobal ( QPointF plot_coordinates )

virtual

Definition at line 1794 of file baseplotwidget.cpp.

{
  // First convert the graph coordinates to pixel coordinates.

  QPointF pixels_coordinates(xAxis->coordToPixel(graph_coordinates.x()),
                             yAxis->coordToPixel(graph_coordinates.y()));

  moveMouseCursorPixelCoordToGlobal(pixels_coordinates.toPoint());
}

References moveMouseCursorPixelCoordToGlobal().

◆ moveMouseCursorPixelCoordToGlobal()

void pappso::BasePlotWidget::moveMouseCursorPixelCoordToGlobal ( QPointF local_coordinates )

virtual

Definition at line 1806 of file baseplotwidget.cpp.

{
  // qDebug() << "Calling set pos with new cursor position.";
  QCursor::setPos(mapToGlobal(pixel_coordinates.toPoint()));
}

Referenced by horizontalMoveMouseCursorCountPixels(), moveMouseCursorGraphCoordToGlobal(), and verticalMoveMouseCursorCountPixels().

◆ plotRangesChangedSignal

void pappso::BasePlotWidget::plotRangesChangedSignal ( const BasePlotContext & context )

signal

Referenced by axisDoubleClickHandler(), pappso::BaseTracePlotWidget::axisDoubleClickHandler(), axisPan(), pappso::BaseTracePlotWidget::axisPan(), axisReframe(), pappso::BaseTracePlotWidget::axisReframe(), axisRescale(), pappso::BaseTracePlotWidget::axisRescale(), axisZoom(), pappso::BaseTracePlotWidget::axisZoom(), mouseReleaseHandlerLeftButton(), mouseWheelHandler(), and restoreAxesRangeHistory().

◆ plottableDestructionRequestedSignal

void pappso::BasePlotWidget::plottableDestructionRequestedSignal	(	BasePlotWidget *	base_plot_widget_p,
		QCPAbstractPlottable *	plottable_p,
		const BasePlotContext &	context )

signal

References BasePlotWidget().

Referenced by keyReleaseEvent().

◆ plottableSelectionChangedSignal

void pappso::BasePlotWidget::plottableSelectionChangedSignal	(	QCPAbstractPlottable *	plottable_p,
		bool	selected )

signal

Referenced by pappso::BaseColorMapPlotWidget::addColorMap(), pappso::BaseColorMapPlotWidget::addColorMap(), and pappso::BaseTracePlotWidget::addTrace().

◆ redrawPlotBackground()

void pappso::BasePlotWidget::redrawPlotBackground ( QWidget * focusedPlotWidget )

virtual

Redraw the background of the focusedPlotWidget plot widget.

Definition at line 3250 of file baseplotwidget.cpp.

{
  if(focusedPlotWidget == nullptr)
    throw ExceptionNotPossible(
      "baseplotwidget.cpp @ redrawPlotBackground(QWidget *focusedPlotWidget "
      "-- "
      "ERROR focusedPlotWidget cannot be nullptr.");

  if(dynamic_cast<QWidget *>(this) != focusedPlotWidget)
    {
      // The focused widget is not *this widget. We should make sure that
      // we were not the one that had the focus, because in this case we
      // need to redraw an unfocused background.

      axisRect()->setBackground(m_unfocusedBrush);
    }
  else
    {
      axisRect()->setBackground(m_focusedBrush);
    }

  replot();
}

References m_focusedBrush, and m_unfocusedBrush.

Referenced by yMinMaxOnXAxisCurrentRange().

◆ replotWithAxesRanges()

void pappso::BasePlotWidget::replotWithAxesRanges	(	QCPRange	xAxisRange,
		QCPRange	yAxisRange,
		Enums::Axis	axis )

virtual

Definition at line 2181 of file baseplotwidget.cpp.

{
  // qDebug() << "With axis:" << (int)axis;

  if(static_cast<int>(axis) & static_cast<int>(Enums::Axis::x))
    {
      xAxis->setRange(xAxisRange.lower, xAxisRange.upper);
    }

  if(static_cast<int>(axis) & static_cast<int>(Enums::Axis::y))
    {
      yAxis->setRange(yAxisRange.lower, yAxisRange.upper);
    }

  // We do not want to update the history, because there would be way too
  // much history items, since this function is called upon mouse moving
  // handling and not only during mouse release events.
  // updateAxesRangeHistory();

  replot();
}

References pappso::Enums::x, and pappso::Enums::y.

Referenced by yMinMaxOnXAxisCurrentRange().

◆ replotWithAxisRangeX()

void pappso::BasePlotWidget::replotWithAxisRangeX	(	double	lower,
		double	upper )

virtual

Definition at line 2205 of file baseplotwidget.cpp.

{
  // qDebug();

  xAxis->setRange(lower, upper);

  replot();
}

Referenced by yMinMaxOnXAxisCurrentRange().

◆ replotWithAxisRangeY()

void pappso::BasePlotWidget::replotWithAxisRangeY	(	double	lower,
		double	upper )

virtual

Definition at line 2216 of file baseplotwidget.cpp.

{
  // qDebug();

  yAxis->setRange(lower, upper);

  replot();
}

Referenced by yMinMaxOnXAxisCurrentRange().

◆ resetAxesRangeHistory()

void pappso::BasePlotWidget::resetAxesRangeHistory ( )

virtual

Definition at line 473 of file baseplotwidget.cpp.

{
  m_xAxisRangeHistory.clear();
  m_yAxisRangeHistory.clear();

  m_xAxisRangeHistory.push_back(new QCPRange(xAxis->range()));
  m_yAxisRangeHistory.push_back(new QCPRange(yAxis->range()));

  // qDebug() << "size of history:" << m_xAxisRangeHistory.size()
  //<< "setting index to 0";

  // qDebug() << "resetting axes history to values:" << xAxis->range().lower
  //<< "--" << xAxis->range().upper << "and" << yAxis->range().lower
  //<< "--" << yAxis->range().upper;

  m_lastAxisRangeHistoryIndex = 0;
}

References m_lastAxisRangeHistoryIndex, m_xAxisRangeHistory, and m_yAxisRangeHistory.

Referenced by pappso::BaseColorMapPlotWidget::addColorMap(), pappso::BaseColorMapPlotWidget::addColorMap(), pappso::BaseTracePlotWidget::addTrace(), axisDoubleClickHandler(), pappso::BaseTracePlotWidget::axisDoubleClickHandler(), pappso::BaseTracePlotWidget::clearGraphData(), and pappso::BaseTracePlotWidget::setGraphData().

◆ resetSelectionRectangle()

void pappso::BasePlotWidget::resetSelectionRectangle ( )

virtual

Definition at line 3173 of file baseplotwidget.cpp.

{
  std::const_pointer_cast<IntegrationScopeBase>(m_context.msp_integrationScope)->reset();
}

References m_context.

Referenced by hideSelectionRectangle(), and yMinMaxOnXAxisCurrentRange().

◆ restoreAxesRangeHistory()

void pappso::BasePlotWidget::restoreAxesRangeHistory ( std::size_t index )

virtual

Get the axis histories at index index and update the plot ranges.

Parameters

index index at which to select the axis history item.

See also: updateAxesRangeHistory().

Definition at line 550 of file baseplotwidget.cpp.

{
  // qDebug() << "Axes history size:" << m_xAxisRangeHistory.size()
  //<< "current index:" << m_lastAxisRangeHistoryIndex
  //<< "asking to restore index:" << index;

  if(index >= m_xAxisRangeHistory.size())
    {
      // qDebug() << "index >= history size. Returning.";
      return;
    }

  // We want to go back to the range history item at index, which means we want
  // to pop back all the items between index+1 and size-1.

  while(m_xAxisRangeHistory.size() > index + 1)
    m_xAxisRangeHistory.pop_back();

  if(m_xAxisRangeHistory.size() - 1 != index)
    qFatal("Programming error.");

  xAxis->setRange(*(m_xAxisRangeHistory.at(index)));
  yAxis->setRange(*(m_yAxisRangeHistory.at(index)));

  hideAllPlotItems();

  mp_vPosTracerItem->setVisible(false);
  mp_hPosTracerItem->setVisible(false);

  mp_vStartTracerItem->setVisible(false);
  mp_vEndTracerItem->setVisible(false);


  // The start tracer will keep beeing represented at the last position and last
  // size even if we call this function repetitively. So actually do not show,
  // it will reappare as soon as the mouse is moved.
  // if(m_shouldTracersBeVisible)
  //{
  // mp_vStartTracerItem->setVisible(true);
  //}

  replot();

  updateContextXandYAxisRanges();

  // qDebug() << "restored axes history to index:" << index
  //<< "with values:" << xAxis->range().lower << "--"
  //<< xAxis->range().upper << "and" << yAxis->range().lower << "--"
  //<< yAxis->range().upper;

  emit plotRangesChangedSignal(m_context);
}

References hideAllPlotItems(), m_context, m_xAxisRangeHistory, m_yAxisRangeHistory, mp_hPosTracerItem, mp_vEndTracerItem, mp_vPosTracerItem, mp_vStartTracerItem, plotRangesChangedSignal(), and updateContextXandYAxisRanges().

Referenced by restorePreviousAxesRangeHistory().

◆ restorePreviousAxesRangeHistory()

void pappso::BasePlotWidget::restorePreviousAxesRangeHistory ( )

virtual

Go up one history element in the axis history.

If possible, back up one history item in the axis histories and update the plot's x/y-axis ranges to match that history item.

Definition at line 522 of file baseplotwidget.cpp.

{
  // qDebug() << "axes history size:" << m_xAxisRangeHistory.size()
  //<< "current index:" << m_lastAxisRangeHistoryIndex;

  if(m_lastAxisRangeHistoryIndex == 0)
    {
      // qDebug() << "current index is 0 returning doing nothing";

      return;
    }

  // qDebug() << "Setting index to:" << m_lastAxisRangeHistoryIndex - 1
  //<< "and restoring axes history to that index";

  restoreAxesRangeHistory(--m_lastAxisRangeHistoryIndex);
}

References m_lastAxisRangeHistoryIndex, and restoreAxesRangeHistory().

Referenced by keyReleaseEvent().

◆ setAxisLabelX()

void pappso::BasePlotWidget::setAxisLabelX ( const QString & label )

virtual

Definition at line 458 of file baseplotwidget.cpp.

{
  xAxis->setLabel(label);
}

◆ setAxisLabelY()

void pappso::BasePlotWidget::setAxisLabelY ( const QString & label )

virtual

Definition at line 465 of file baseplotwidget.cpp.

{
  yAxis->setLabel(label);
}

◆ setFocus()

void pappso::BasePlotWidget::setFocus ( )

virtual

PLOT ITEMS : TRACER TEXT ITEMS...

Definition at line 3236 of file baseplotwidget.cpp.

{
  // qDebug() << "Setting focus to the QCustomPlot:" << this;

  QCustomPlot::setFocus();

  // qDebug() << "Emitting setFocusSignal().";

  emit setFocusSignal();
}

References setFocusSignal().

Referenced by mouseMoveHandler(), mousePressHandler(), and yMinMaxOnXAxisCurrentRange().

◆ setFocusSignal

void pappso::BasePlotWidget::setFocusSignal ( )

signal

Referenced by setFocus().

◆ setPen()

void pappso::BasePlotWidget::setPen ( const QPen & pen )

virtual

Definition at line 390 of file baseplotwidget.cpp.

{
  m_pen = pen;
}

References m_pen.

◆ setPlottingColor() [1/2]

void pappso::BasePlotWidget::setPlottingColor	(	int	index,
		const QColor &	new_color )

virtual

Definition at line 421 of file baseplotwidget.cpp.

{
  if(!new_color.isValid())
    return;

  QCPGraph *graph_p = graph(index);

  if(graph_p == nullptr)
    qFatal("Programming error.");

  return setPlottingColor(graph_p, new_color);
}

References setPlottingColor().

◆ setPlottingColor() [2/2]

void pappso::BasePlotWidget::setPlottingColor	(	QCPAbstractPlottable *	plottable_p,
		const QColor &	new_color )

virtual

Reimplemented in pappso::BaseColorMapPlotWidget.

Definition at line 404 of file baseplotwidget.cpp.

{
  if(plottable_p == nullptr)
    qFatal("Pointer cannot be nullptr.");

  // First this single-graph widget
  QPen pen;

  pen = plottable_p->pen();
  pen.setColor(new_color);
  plottable_p->setPen(pen);

  replot();
}

Referenced by setPlottingColor().

◆ setupWidget()

bool pappso::BasePlotWidget::setupWidget ( )

virtual

Definition at line 342 of file baseplotwidget.cpp.

{
  // qDebug();

  // By default the widget comes with a graph. Remove it.

  if(graphCount())
    {
      // QCPLayer *layer_p = graph(0)->layer();
      // qDebug() << "The graph was on layer:" << layer_p->name();

      // As of today 20210313, the graph is created on the currentLayer(), that
      // is "main".

      removeGraph(0);
    }

  // The general idea is that we do want custom layers for the trace|colormap
  // plots.

  // qDebug().noquote() << "Right before creating the new layer, layers:\n"
  //<< allLayerNamesToString();

  // Add the layer that will store all the plots and all the ancillary items.
  addLayer("plotsLayer", layer("background"), QCustomPlot::LayerInsertMode::limAbove);
  // qDebug().noquote() << "Added new plotsLayer, layers:\n"
  //<< allLayerNamesToString();

  // This is required so that we get the keyboard events.
  setFocusPolicy(Qt::StrongFocus);
  setInteractions(QCP::iRangeZoom | QCP::iSelectPlottables | QCP::iMultiSelect);

  // We want to capture the signals emitted by the QCustomPlot base class.
  connect(this, &QCustomPlot::mouseMove, this, &BasePlotWidget::mouseMoveHandler);

  connect(this, &QCustomPlot::mousePress, this, &BasePlotWidget::mousePressHandler);

  connect(this, &QCustomPlot::mouseRelease, this, &BasePlotWidget::mouseReleaseHandler);

  connect(this, &QCustomPlot::mouseWheel, this, &BasePlotWidget::mouseWheelHandler);

  connect(this, &QCustomPlot::axisDoubleClick, this, &BasePlotWidget::axisDoubleClickHandler);

  return true;
}

References axisDoubleClickHandler(), mouseMoveHandler(), mousePressHandler(), mouseReleaseHandler(), and mouseWheelHandler().

Referenced by BasePlotWidget(), and BasePlotWidget().

◆ showTracers()

void pappso::BasePlotWidget::showTracers ( )

virtual

Show the traces (vertical and horizontal).

Definition at line 2248 of file baseplotwidget.cpp.

{
  m_shouldTracersBeVisible = true;

  mp_vPosTracerItem->setVisible(true);
  mp_hPosTracerItem->setVisible(true);

  mp_vStartTracerItem->setVisible(true);
  mp_vEndTracerItem->setVisible(true);

  // Force a replot to make sure the action is immediately visible by the
  // user, even without moving the mouse.
  replot();
}

References m_shouldTracersBeVisible, mp_hPosTracerItem, mp_vEndTracerItem, mp_vPosTracerItem, and mp_vStartTracerItem.

Referenced by keyReleaseEvent(), and yMinMaxOnXAxisCurrentRange().

◆ spaceKeyReleaseEvent()

void pappso::BasePlotWidget::spaceKeyReleaseEvent ( QKeyEvent * event )

virtual

Definition at line 796 of file baseplotwidget.cpp.

{
  // qDebug();
}

Referenced by keyReleaseEvent().

◆ updateAxesRangeHistory()

void pappso::BasePlotWidget::updateAxesRangeHistory ( )

virtual

Create new axis range history items and append them to the history.

The plot widget is queried to get the current x/y-axis ranges and the current ranges are appended to the history for x-axis and for y-axis.

Definition at line 500 of file baseplotwidget.cpp.

{
  m_xAxisRangeHistory.push_back(new QCPRange(xAxis->range()));
  m_yAxisRangeHistory.push_back(new QCPRange(yAxis->range()));

  m_lastAxisRangeHistoryIndex = m_xAxisRangeHistory.size() - 1;

  // qDebug() << "axes history size:" << m_xAxisRangeHistory.size()
  //<< "current index:" << m_lastAxisRangeHistoryIndex
  //<< xAxis->range().lower << "--" << xAxis->range().upper << "and"
  //<< yAxis->range().lower << "--" << yAxis->range().upper;
}

References m_lastAxisRangeHistoryIndex, m_xAxisRangeHistory, and m_yAxisRangeHistory.

Referenced by axisDoubleClickHandler(), pappso::BaseTracePlotWidget::axisDoubleClickHandler(), axisReframe(), pappso::BaseTracePlotWidget::axisReframe(), axisZoom(), pappso::BaseTracePlotWidget::axisZoom(), mouseReleaseHandlerLeftButton(), and mouseWheelHandler().

◆ updateContextXandYAxisRanges()

void pappso::BasePlotWidget::updateContextXandYAxisRanges ( )

virtual

Definition at line 3276 of file baseplotwidget.cpp.

{
  m_context.m_xRange = QCPRange(xAxis->range().lower, xAxis->range().upper);
  m_context.m_yRange = QCPRange(yAxis->range().lower, yAxis->range().upper);

  // qDebug() << "The new updated context: " << m_context.toString();
}

References m_context.

Referenced by axisDoubleClickHandler(), pappso::BaseTracePlotWidget::axisDoubleClickHandler(), axisPan(), pappso::BaseTracePlotWidget::axisPan(), axisReframe(), pappso::BaseTracePlotWidget::axisReframe(), axisRescale(), pappso::BaseTracePlotWidget::axisRescale(), axisZoom(), pappso::BaseTracePlotWidget::axisZoom(), restoreAxesRangeHistory(), and yMinMaxOnXAxisCurrentRange().

◆ updateIntegrationScope()

void pappso::BasePlotWidget::updateIntegrationScope ( bool for_integration = false )

protectedvirtual

Definition at line 2594 of file baseplotwidget.cpp.

{

  // if(for_integration)
  // qDebug() << "for_integration:" << for_integration;

  // By essence, the one-dimension IntegrationScope is characterized
  // by the left-most point and the width. Using these two data bits
  // it is possible to compute the x value of the right-most point.

  double x_range_start = std::min(m_context.m_currentDragPoint.x(), m_context.m_startDragPoint.x());
  double x_range_end   = std::max(m_context.m_currentDragPoint.x(), m_context.m_startDragPoint.x());

  // qDebug() << "x_range_start:" << x_range_start << "-" << "x_range_end:" << x_range_end;

  double y_position = m_context.m_startDragPoint.y();

  m_context.updateIntegrationScope();

  // Top line
  mp_selectionRectangeLine1->start->setCoords(QPointF(x_range_start, y_position));
  mp_selectionRectangeLine1->end->setCoords(QPointF(x_range_end, y_position));

  // Only if we are drawing a selection rectangle for integration, do we set
  // arrow heads to the line.
  if(for_integration)
    {
      mp_selectionRectangeLine1->setHead(QCPLineEnding::esSpikeArrow);
      mp_selectionRectangeLine1->setTail(QCPLineEnding::esSpikeArrow);
    }
  else
    {
      mp_selectionRectangeLine1->setHead(QCPLineEnding::esNone);
      mp_selectionRectangeLine1->setTail(QCPLineEnding::esNone);
    }
  mp_selectionRectangeLine1->setVisible(true);

  // Right line: does not exist, start and end are the same end point of the
  // top line.
  mp_selectionRectangeLine2->start->setCoords(QPointF(x_range_end, y_position));
  mp_selectionRectangeLine2->end->setCoords(QPointF(x_range_end, y_position));
  mp_selectionRectangeLine2->setVisible(false);

  // Bottom line: identical to the top line, but invisible
  mp_selectionRectangeLine3->start->setCoords(QPointF(x_range_start, y_position));
  mp_selectionRectangeLine3->end->setCoords(QPointF(x_range_end, y_position));
  mp_selectionRectangeLine3->setVisible(false);

  // Left line: does not exist: start and end are the same end point of the
  // top line.
  mp_selectionRectangeLine4->start->setCoords(QPointF(x_range_end, y_position));
  mp_selectionRectangeLine4->end->setCoords(QPointF(x_range_end, y_position));
  mp_selectionRectangeLine4->setVisible(false);
}

References m_context, mp_selectionRectangeLine1, mp_selectionRectangeLine2, mp_selectionRectangeLine3, and mp_selectionRectangeLine4.

Referenced by updateIntegrationScopeDrawing().

◆ updateIntegrationScopeDrawing()

void pappso::BasePlotWidget::updateIntegrationScopeDrawing	(	bool	as_line_segment = false,
		bool	for_integration = false )

virtual

Definition at line 3046 of file baseplotwidget.cpp.

{
  // qDebug() << "as_line_segment:" << as_line_segment;
  // qDebug() << "for_integration:" << for_integration;

  // We now need to construct the selection rectangle, either for zoom or for
  // integration.

  // There are two situations :
  //
  // 1. if the rectangle should look like a line segment
  //
  // 2. if the rectangle should actually look like a rectangle. In this case,
  // there are two sub-situations:
  //
  //    a. if the Alt modifier key is down, then the rectangle is rhomboid.
  //
  //    b. otherwise the rectangle is conventional.

  if(as_line_segment)
    {
      // qDebug() << "Updating the integration scope to an IntegrationScope.";
      updateIntegrationScope(for_integration);
    }
  else
    {
      if(!(m_context.m_keyboardModifiers & Qt::AltModifier))
        {
          // qDebug()
          //   << "Updating the integration scope to an IntegrationScopeRect.";
          updateIntegrationScopeRect(for_integration);
        }
      else if(m_context.m_keyboardModifiers & Qt::AltModifier)
        {
          // The user might use the Alt modifier, but if no rhomboid side has
          // been defined using the S key, then we do not do any rhomboid
          // selection because we do not know the side size of that rhomboid.

          if(!m_context.m_integrationScopeRhombHeight && !m_context.m_integrationScopeRhombWidth)
            updateIntegrationScopeRect(for_integration);
          else
            // qDebug()
            //   << "Updating the integration scope to an
            //   IntegrationScopeRhomb.";
            updateIntegrationScopeRhomb(for_integration);
        }
    }

  // Depending on the kind of IntegrationScope, (normal, rect or rhomb)
  // we have to measure things in different ways. We now set in the context
  // a number of parameters that will be used by its user.

  QPointF point;
  double height;
  std::vector<QPointF> points;

  if(m_context.msp_integrationScope->getPoints(points))
    {
      // We have defined a IntegrationScopeRhomb.

      if(!m_context.msp_integrationScope->getLeftMostPoint(point))
        qFatal("Failed to get LeftMost point.");
      m_context.m_xRegionRangeStart = point.x();

      if(!m_context.msp_integrationScope->getRightMostPoint(point))
        qFatal("Failed to get RightMost point.");
      m_context.m_xRegionRangeEnd = point.x();
    }
  else if(m_context.msp_integrationScope->getHeight(height))
    {
      // We have defined a IntegrationScopeRect.

      if(!m_context.msp_integrationScope->getPoint(point))
        qFatal("Failed to get point.");
      m_context.m_xRegionRangeStart = point.x();

      double width;

      if(!m_context.msp_integrationScope->getWidth(width))
        qFatal("Failed to get width.");

      m_context.m_xRegionRangeEnd = m_context.m_xRegionRangeStart + width;

      m_context.m_yRegionRangeStart = point.y();

      m_context.m_yRegionRangeEnd = point.y() + height;
    }
  else
    {
      // We have defined a IntegrationScope.

      if(!m_context.msp_integrationScope->getPoint(point))
        qFatal("Failed to get point.");
      m_context.m_xRegionRangeStart = point.x();

      double width;

      if(!m_context.msp_integrationScope->getWidth(width))
        qFatal("Failed to get width.");
      m_context.m_xRegionRangeEnd = m_context.m_xRegionRangeStart + width;
    }

  // At this point, draw the text describing the widths.

  // We want the x-delta on the bottom of the rectangle, inside it
  // and the y-delta on the vertical side of the rectangle, inside it.

  // Draw the selection width text
  drawXScopeSpanFeatures();
}

References drawXScopeSpanFeatures(), m_context, updateIntegrationScope(), updateIntegrationScopeRect(), and updateIntegrationScopeRhomb().

Referenced by drawSelectionRectangleAndPrepareZoom(), and yMinMaxOnXAxisCurrentRange().

◆ updateIntegrationScopeHorizontalRhomb()

void pappso::BasePlotWidget::updateIntegrationScopeHorizontalRhomb ( bool for_integration = false )

protectedvirtual

Definition at line 2734 of file baseplotwidget.cpp.

{
  // We are handling a rhomboid scope, that is, a rectangle that
  // is tilted either to the left or to the right.

  // There are two kinds of rhomboid integration scopes: horizontal and
  // vertical.

  /*
   *                            +----------+
   *                            |          |
   *                           |          |
   *                          |          |
   *                         |          |
   *                        |          |
   *                       |          |
   *                      |          |
   *                      +----------+
   *                      ----width---
   */

  // As visible here, the fixed size of the rhomboid (using the S key in the
  // plot widget) is the *horizontal* side (this is the plot context's
  // m_integrationScopeRhombWidth).

  IntegrationScopeFeatures scope_features;

  // Top horizontal line
  QPointF point_1;
  scope_features = m_context.msp_integrationScope->getLeftMostTopPoint(point_1);

  // When the user rotates the horizontal rhomboid, at some point, if the
  // current drag point has the same y axis value as the start drag point, then
  // we say that the rhomboid is flattened on the x axis. In this case, we do
  // not draw anything as this is a purely unusable situation.

  if(scope_features & IntegrationScopeFeatures::FLAT_ON_X_AXIS)
    {
      // qDebug() << "The horizontal rhomboid is flattened on the x axis.";

      mp_selectionRectangeLine1->setVisible(false);
      mp_selectionRectangeLine2->setVisible(false);
      mp_selectionRectangeLine3->setVisible(false);
      mp_selectionRectangeLine4->setVisible(false);

      return;
    }

  if(scope_features & IntegrationScopeFeatures::RHOMBOID_VERTICAL)
    qFatal("The rhomboid should be horizontal!");

  // At this point we can draw the rhomboid fine.

  if(!m_context.msp_integrationScope->getLeftMostTopPoint(point_1))
    qFatal("Failed to getLeftMostTopPoint.");
  QPointF point_2;
  if(!m_context.msp_integrationScope->getRightMostTopPoint(point_2))
    qFatal("Failed to getRightMostTopPoint.");

  // qDebug() << "For top line, two points:" << point_1 << "--" << point_2;

  mp_selectionRectangeLine1->start->setCoords(point_1);
  mp_selectionRectangeLine1->end->setCoords(point_2);

  // Only if we are drawing a selection rectangle for integration, do we set
  // arrow heads to the line.
  if(for_integration)
    {
      mp_selectionRectangeLine1->setHead(QCPLineEnding::esSpikeArrow);
      mp_selectionRectangeLine1->setTail(QCPLineEnding::esSpikeArrow);
    }
  else
    {
      mp_selectionRectangeLine1->setHead(QCPLineEnding::esNone);
      mp_selectionRectangeLine1->setTail(QCPLineEnding::esNone);
    }

  mp_selectionRectangeLine1->setVisible(true);

  // Right line
  if(!m_context.msp_integrationScope->getRightMostBottomPoint(point_1))
    qFatal("Failed to getRightMostBottomPoint.");
  mp_selectionRectangeLine2->start->setCoords(point_2);
  mp_selectionRectangeLine2->end->setCoords(point_1);
  mp_selectionRectangeLine2->setVisible(true);

  // qDebug() << "For right line, two points:" << point_2 << "--" << point_1;

  // Bottom horizontal line
  if(!m_context.msp_integrationScope->getLeftMostBottomPoint(point_2))
    qFatal("Failed to getLeftMostBottomPoint.");
  mp_selectionRectangeLine3->start->setCoords(point_1);
  mp_selectionRectangeLine3->end->setCoords(point_2);
  mp_selectionRectangeLine3->setVisible(true);

  // qDebug() << "For bottom line, two points:" << point_1 << "--" << point_2;

  // Left line
  if(!m_context.msp_integrationScope->getLeftMostTopPoint(point_1))
    qFatal("Failed to getLeftMostTopPoint.");
  mp_selectionRectangeLine4->end->setCoords(point_2);
  mp_selectionRectangeLine4->start->setCoords(point_1);
  mp_selectionRectangeLine4->setVisible(true);

  // qDebug() << "For left line, two points:" << point_2 << "--" << point_1;
}

References pappso::FLAT_ON_X_AXIS, m_context, mp_selectionRectangeLine1, mp_selectionRectangeLine2, mp_selectionRectangeLine3, mp_selectionRectangeLine4, and pappso::RHOMBOID_VERTICAL.

Referenced by updateIntegrationScopeRhomb().

◆ updateIntegrationScopeRect()

void pappso::BasePlotWidget::updateIntegrationScopeRect ( bool for_integration = false )

protectedvirtual

Definition at line 2651 of file baseplotwidget.cpp.

{
  // qDebug();

  // if(for_integration)
  // qDebug() << "for_integration:" << for_integration;

  // We are handling a conventional rectangle. Just create four points
  // from top left to bottom right. But we want the top left point to be
  // effectively the top left point and the bottom point to be the bottom
  // point. So we need to try all four direction combinations, left to right
  // or converse versus top to bottom or converse.

  m_context.updateIntegrationScopeRect();

  // Now that the integration scope has been updated as a rectangle,
  // use these newly set data to actually draw the integration
  // scope lines.

  QPointF bottom_left_point;
  if(!m_context.msp_integrationScope->getPoint(bottom_left_point))
    qFatal("Failed to get point.");
  // qDebug() << "Starting point is left bottom point:" << bottom_left_point;

  double width;
  if(!m_context.msp_integrationScope->getWidth(width))
    qFatal("Failed to get width.");
  // qDebug() << "Width:" << width;

  double height;
  if(!m_context.msp_integrationScope->getHeight(height))
    qFatal("Failed to get height.");
  // qDebug() << "Height:" << height;

  QPointF bottom_right_point(bottom_left_point.x() + width, bottom_left_point.y());
  // qDebug() << "bottom_right_point:" << bottom_right_point;

  QPointF top_right_point(bottom_left_point.x() + width, bottom_left_point.y() + height);
  // qDebug() << "top_right_point:" << top_right_point;

  QPointF top_left_point(bottom_left_point.x(), bottom_left_point.y() + height);

  // qDebug() << "top_left_point:" << top_left_point;

  // Start by drawing the bottom line because the IntegrationScopeRect has the
  // left bottom point and the width and the height to fully characterize it.

  // Bottom line (left to right)
  mp_selectionRectangeLine3->start->setCoords(bottom_left_point);
  mp_selectionRectangeLine3->end->setCoords(bottom_right_point);
  mp_selectionRectangeLine3->setVisible(true);

  // Right line (bottom to top)
  mp_selectionRectangeLine2->start->setCoords(bottom_right_point);
  mp_selectionRectangeLine2->end->setCoords(top_right_point);
  mp_selectionRectangeLine2->setVisible(true);

  // Top line (right to left)
  mp_selectionRectangeLine1->start->setCoords(top_right_point);
  mp_selectionRectangeLine1->end->setCoords(top_left_point);
  mp_selectionRectangeLine1->setVisible(true);

  // Left line (top to bottom)
  mp_selectionRectangeLine4->start->setCoords(top_left_point);
  mp_selectionRectangeLine4->end->setCoords(bottom_left_point);
  mp_selectionRectangeLine4->setVisible(true);

  // Only if we are drawing a selection rectangle for integration, do we
  // set arrow heads to the line.
  if(for_integration)
    {
      mp_selectionRectangeLine1->setHead(QCPLineEnding::esSpikeArrow);
      mp_selectionRectangeLine1->setTail(QCPLineEnding::esSpikeArrow);
    }
  else
    {
      mp_selectionRectangeLine1->setHead(QCPLineEnding::esNone);
      mp_selectionRectangeLine1->setTail(QCPLineEnding::esNone);
    }
}

References m_context, mp_selectionRectangeLine1, mp_selectionRectangeLine2, mp_selectionRectangeLine3, and mp_selectionRectangeLine4.

Referenced by updateIntegrationScopeDrawing().

◆ updateIntegrationScopeRhomb()

void pappso::BasePlotWidget::updateIntegrationScopeRhomb ( bool for_integration = false )

protectedvirtual

Definition at line 2958 of file baseplotwidget.cpp.

{
  //  qDebug();

  // if(for_integration)
  // qDebug() << "for_integration:" << for_integration;

  // We are handling a skewed rectangle (rhomboid), that is a rectangle that
  // is tilted either to the left or to the right.

  // There are two kinds of rhomboid integration scopes:

  /*
                          4+----------+3
                           |          |
                          |          |
                         |          |
                        |          |
                       |          |
                      |          |
                     |          |
                    1+----------+2
                     ----width---
 */

  // As visible here, the fixed size of the rhomboid (using the S key in the
  // plot widget) is the *horizontal* side (this is the plot context's
  // m_integrationScopeRhombWidth).

  // and


  /*
   *                                       +3
   *                                     . |
   *                                   .   |
   *                                 .     |
   *                               .       +2
   *                             .       .
   *                           .       .
   *                         .       .
   *                      4+       .
   *                     | |     .
   *            height   | |   .
   *                     | | .
   *                      1+
   *
   */

  // As visible here, the fixed size of the rhomboid (using the S key in the
  // plot widget) is the *vertical* side (this is the plot context's
  // m_integrationScopeRhombHeight).

  // qDebug() << "Before calling updateIntegrationScopeRhomb(), "
  //             "m_integrationScopeRhombWidth:"
  //          << m_context.m_integrationScopeRhombWidth
  //          << "and m_integrationScopeRhombHeight:"
  //          << m_context.m_integrationScopeRhombHeight;

  m_context.updateIntegrationScopeRhomb();

  // qDebug() << "After, m_integrationScopeRhombWidth:"
  //          << m_context.m_integrationScopeRhombWidth
  //          << "and m_integrationScopeRhombHeight:"
  //          << m_context.m_integrationScopeRhombHeight;

  // Now that the integration scope has been updated as a rhomboid,
  // use these newly set data to actually draw the integration
  // scope lines.

  // We thus need to first establish if we have a horiontal or a vertical
  // rhomboid scope. This information is located in
  // m_context.m_integrationScopeRhombWidth and
  // m_context.m_integrationScopeRhombHeight. If width > 0, height *has to be
  // 0*, which indicates a horizontal rhomb.Conversely, if height is > 0, then
  // the rhomb is vertical.

  if(m_context.m_integrationScopeRhombWidth > 0)
    // We are dealing with a horizontal scope.
    updateIntegrationScopeHorizontalRhomb(for_integration);
  else if(m_context.m_integrationScopeRhombHeight > 0)
    // We are dealing with a vertical scope.
    updateIntegrationScopeVerticalRhomb(for_integration);
  else
    qFatal("Cannot be both the width or height of rhomboid scope be 0.");
}

References m_context, updateIntegrationScopeHorizontalRhomb(), and updateIntegrationScopeVerticalRhomb().

Referenced by updateIntegrationScopeDrawing().

◆ updateIntegrationScopeVerticalRhomb()

void pappso::BasePlotWidget::updateIntegrationScopeVerticalRhomb ( bool for_integration = false )

protectedvirtual

Definition at line 2843 of file baseplotwidget.cpp.

{
  // We are handling a rhomboid scope, that is, a rectangle that
  // is tilted either to the left or to the right.

  // There are two kinds of rhomboid integration scopes: horizontal and
  // vertical.

  /*
   *                                       +3
   *                                     . |
   *                                   .   |
   *                                 .     |
   *                               .       +2
   *                             .       .
   *                           .       .
   *                         .       .
   *                      4+       .
   *                     | |     .
   *            height   | |   .
   *                     | | .
   *                      1+
   *
   */

  // As visible here, the fixed size of the rhomboid (using the S key in the
  // plot widget) is the *vertical* side (this is the plot context's
  // m_integrationScopeRhombHeight).

  IntegrationScopeFeatures scope_features;

  // Left vertical line
  QPointF point_1;
  scope_features = m_context.msp_integrationScope->getLeftMostTopPoint(point_1);

  // When the user rotates the vertical rhomboid, at some point, if the current
  // drag point is on the same x axis value as the start drag point, then we say
  // that the rhomboid is flattened on the y axis. In this case, we do not draw
  // anything as this is a purely unusable situation.

  if(scope_features & IntegrationScopeFeatures::FLAT_ON_Y_AXIS)
    {
      // qDebug() << "The vertical rhomboid is flattened on the y axis.";

      mp_selectionRectangeLine1->setVisible(false);
      mp_selectionRectangeLine2->setVisible(false);
      mp_selectionRectangeLine3->setVisible(false);
      mp_selectionRectangeLine4->setVisible(false);

      return;
    }

  if(scope_features & IntegrationScopeFeatures::RHOMBOID_HORIZONTAL)
    qFatal("The rhomboid should be vertical!");

  // At this point we can draw the rhomboid fine.

  QPointF point_2;
  if(!m_context.msp_integrationScope->getLeftMostBottomPoint(point_2))
    qFatal("Failed to getLeftMostBottomPoint.");

  // qDebug() << "For left vertical line, two points:" << point_1 << "--"
  //          << point_2;

  mp_selectionRectangeLine1->start->setCoords(point_1);
  mp_selectionRectangeLine1->end->setCoords(point_2);

  // Only if we are drawing a selection rectangle for integration, do we set
  // arrow heads to the line.
  if(for_integration)
    {
      mp_selectionRectangeLine1->setHead(QCPLineEnding::esSpikeArrow);
      mp_selectionRectangeLine1->setTail(QCPLineEnding::esSpikeArrow);
    }
  else
    {
      mp_selectionRectangeLine1->setHead(QCPLineEnding::esNone);
      mp_selectionRectangeLine1->setTail(QCPLineEnding::esNone);
    }

  mp_selectionRectangeLine1->setVisible(true);

  // Lower oblique line
  if(!m_context.msp_integrationScope->getRightMostBottomPoint(point_1))
    qFatal("Failed to getRightMostBottomPoint.");
  mp_selectionRectangeLine2->start->setCoords(point_2);
  mp_selectionRectangeLine2->end->setCoords(point_1);
  mp_selectionRectangeLine2->setVisible(true);

  // qDebug() << "For lower oblique line, two points:" << point_2 << "--"
  //          << point_1;

  // Right vertical line
  if(!m_context.msp_integrationScope->getRightMostTopPoint(point_2))
    qFatal("Failed to getRightMostTopPoint.");
  mp_selectionRectangeLine3->start->setCoords(point_1);
  mp_selectionRectangeLine3->end->setCoords(point_2);
  mp_selectionRectangeLine3->setVisible(true);

  // qDebug() << "For right vertical line, two points:" << point_1 << "--"
  //          << point_2;

  // Upper oblique line
  if(!m_context.msp_integrationScope->getLeftMostTopPoint(point_1))
    qFatal("Failed to get the LeftMostTopPoint.");
  mp_selectionRectangeLine4->end->setCoords(point_2);
  mp_selectionRectangeLine4->start->setCoords(point_1);
  mp_selectionRectangeLine4->setVisible(true);

  // qDebug() << "For upper oblique line, two points:" << point_2 << "--"
  //          << point_1;
}

References pappso::FLAT_ON_Y_AXIS, m_context, mp_selectionRectangeLine1, mp_selectionRectangeLine2, mp_selectionRectangeLine3, mp_selectionRectangeLine4, and pappso::RHOMBOID_HORIZONTAL.

Referenced by updateIntegrationScopeRhomb().

◆ verticalGetGraphCoordNewPointCountPixels()

QPointF pappso::BasePlotWidget::verticalGetGraphCoordNewPointCountPixels ( int pixel_count )

virtual

Definition at line 1861 of file baseplotwidget.cpp.

{
  QPointF pixel_coordinates(xAxis->coordToPixel(m_context.m_lastCursorHoveredPoint.x()),
                            yAxis->coordToPixel(m_context.m_lastCursorHoveredPoint.y()) +
                              pixel_count);

  // Now convert back to local coordinates.

  QPointF graph_coordinates(xAxis->pixelToCoord(pixel_coordinates.x()),
                            yAxis->pixelToCoord(pixel_coordinates.y()));

  return graph_coordinates;
}

References m_context.

Referenced by verticalMoveMouseCursorCountPixels().

◆ verticalMoveMouseCursorCountPixels()

void pappso::BasePlotWidget::verticalMoveMouseCursorCountPixels ( int pixel_count )

virtual

Definition at line 1845 of file baseplotwidget.cpp.

{

  QPointF graph_coord = verticalGetGraphCoordNewPointCountPixels(pixel_count);

  QPointF pixel_coord(xAxis->coordToPixel(graph_coord.x()), yAxis->coordToPixel(graph_coord.y()));

  // Now we need ton convert the new coordinates to the global position system
  // and to move the cursor to that new position. That will create an event to
  // move the mouse cursor.

  moveMouseCursorPixelCoordToGlobal(pixel_coord.toPoint());
}

References moveMouseCursorPixelCoordToGlobal(), and verticalGetGraphCoordNewPointCountPixels().

Referenced by directionKeyPressEvent().

◆ whatIsVisibleOfTheSelectionRectangle()

SelectionDrawingLines pappso::BasePlotWidget::whatIsVisibleOfTheSelectionRectangle ( )

virtual

Definition at line 3179 of file baseplotwidget.cpp.

{
  // There are four lines that make the selection polygon. We want to know
  // which lines are visible.

  int current_selection_polygon = static_cast<int>(SelectionDrawingLines::NOT_SET);

  if(mp_selectionRectangeLine1->visible())
    {
      current_selection_polygon |= static_cast<int>(SelectionDrawingLines::TOP_LINE);
      // qDebug() << "current_selection_polygon:" <<
      // current_selection_polygon;
    }
  if(mp_selectionRectangeLine2->visible())
    {
      current_selection_polygon |= static_cast<int>(SelectionDrawingLines::RIGHT_LINE);
      // qDebug() << "current_selection_polygon:" <<
      // current_selection_polygon;
    }
  if(mp_selectionRectangeLine3->visible())
    {
      current_selection_polygon |= static_cast<int>(SelectionDrawingLines::BOTTOM_LINE);
      // qDebug() << "current_selection_polygon:" <<
      // current_selection_polygon;
    }
  if(mp_selectionRectangeLine4->visible())
    {
      current_selection_polygon |= static_cast<int>(SelectionDrawingLines::LEFT_LINE);
      // qDebug() << "current_selection_polygon:" <<
      // current_selection_polygon;
    }

  // qDebug() << "returning visibility:" << current_selection_polygon;

  return static_cast<SelectionDrawingLines>(current_selection_polygon);
}

References pappso::BOTTOM_LINE, pappso::LEFT_LINE, mp_selectionRectangeLine1, mp_selectionRectangeLine2, mp_selectionRectangeLine3, mp_selectionRectangeLine4, pappso::NOT_SET, pappso::RIGHT_LINE, and pappso::TOP_LINE.

Referenced by mouseReleaseHandlerLeftButton(), and yMinMaxOnXAxisCurrentRange().

◆ xAxisMeasurementSignal

void pappso::BasePlotWidget::xAxisMeasurementSignal	(	const BasePlotContext &	context,
		bool	with_delta )

signal

Referenced by drawSelectionRectangleAndPrepareZoom(), drawXScopeSpanFeatures(), and drawYScopeSpanFeatures().

◆ yMinMaxOnXAxisCurrentRange() [1/2]

void pappso::BasePlotWidget::yMinMaxOnXAxisCurrentRange	(	double &	min,
		double &	max,
		int	index )

◆ yMinMaxOnXAxisCurrentRange() [2/2]

void pappso::BasePlotWidget::yMinMaxOnXAxisCurrentRange	(	double &	min,
		double &	max,
		QCPAbstractPlottable *	plottable_p = nullptr )

Member Data Documentation

◆ m_axisLabelX

QString pappso::BasePlotWidget::m_axisLabelX

protected

Definition at line 270 of file baseplotwidget.h.

Referenced by BasePlotWidget().

◆ m_axisLabelY

QString pappso::BasePlotWidget::m_axisLabelY

protected

Definition at line 271 of file baseplotwidget.h.

Referenced by BasePlotWidget().

◆ m_context

BasePlotContext pappso::BasePlotWidget::m_context

protected

Definition at line 273 of file baseplotwidget.h.

Referenced by pappso::DriftSpecTracePlotWidget::DriftSpecTracePlotWidget(), pappso::MassSpecTracePlotWidget::MassSpecTracePlotWidget(), pappso::MassSpecTracePlotWidget::MassSpecTracePlotWidget(), pappso::TicXicChromTracePlotWidget::TicXicChromTracePlotWidget(), axisDoubleClickHandler(), pappso::BaseTracePlotWidget::axisDoubleClickHandler(), axisPan(), pappso::BaseTracePlotWidget::axisPan(), axisReframe(), pappso::BaseTracePlotWidget::axisReframe(), axisRescale(), pappso::BaseTracePlotWidget::axisRescale(), axisZoom(), pappso::BaseTracePlotWidget::axisZoom(), calculateDragDeltas(), pappso::BaseColorMapPlotWidget::currentXaxisRangeIndices(), pappso::BaseColorMapPlotWidget::currentYaxisRangeIndices(), directionKeyPressEvent(), dragDirection(), drawSelectionRectangleAndPrepareZoom(), drawXScopeSpanFeatures(), drawYScopeSpanFeatures(), getContext(), horizontalGetGraphCoordNewPointCountPixels(), isVerticalDisplacementAboveThreshold(), keyPressEvent(), pappso::DriftSpecTracePlotWidget::keyPressEvent(), pappso::TicXicChromTracePlotWidget::keyPressEvent(), keyReleaseEvent(), mouseMoveHandler(), mouseMoveHandlerDraggingCursor(), mouseMoveHandlerLeftButtonDraggingCursor(), mouseMoveHandlerNotDraggingCursor(), mouseMoveHandlerRightButtonDraggingCursor(), mousePressHandler(), pappso::TicXicChromTracePlotWidget::mousePressHandler(), mousePseudoButtonKeyReleaseEvent(), mouseReleaseHandler(), pappso::TicXicChromTracePlotWidget::mouseReleaseHandler(), mouseReleaseHandlerLeftButton(), mouseReleaseHandlerRightButton(), mouseWheelHandler(), pappso::MassSpecTracePlotWidget::refreshBaseContext(), resetSelectionRectangle(), restoreAxesRangeHistory(), updateContextXandYAxisRanges(), updateIntegrationScope(), updateIntegrationScopeDrawing(), updateIntegrationScopeHorizontalRhomb(), updateIntegrationScopeRect(), updateIntegrationScopeRhomb(), updateIntegrationScopeVerticalRhomb(), and verticalGetGraphCoordNewPointCountPixels().

◆ m_desc

QString pappso::BasePlotWidget::m_desc = "NOT_SET"

protected

Description of the plot widget.

Definition at line 265 of file baseplotwidget.h.

◆ m_fileName

QString pappso::BasePlotWidget::m_fileName

protected

The name of the data file from which the mass data were read.

Definition at line 268 of file baseplotwidget.h.

◆ m_focusedBrush

QBrush pappso::BasePlotWidget::m_focusedBrush = QBrush(m_focusedColor)

protected

Color used for the background of focused plot.

Definition at line 354 of file baseplotwidget.h.

Referenced by redrawPlotBackground().

◆ m_focusedColor

QColor pappso::BasePlotWidget::m_focusedColor = QColor(Qt::transparent)

protected

Color used for the background of focused plot.

Definition at line 352 of file baseplotwidget.h.

◆ m_lastAxisRangeHistoryIndex

std::size_t pappso::BasePlotWidget::m_lastAxisRangeHistoryIndex = 0

protected

Index of the last axis range history item.

Each time the user modifies the ranges (x/y axis) during panning or zooming of the graph, the new axis ranges are stored in a axis ranges history list. This index allows to point to the last range of that history.

Definition at line 315 of file baseplotwidget.h.

Referenced by resetAxesRangeHistory(), restorePreviousAxesRangeHistory(), and updateAxesRangeHistory().

◆ m_leftMousePseudoButtonKey

int pappso::BasePlotWidget::m_leftMousePseudoButtonKey = Qt::Key_Less

protected

Definition at line 275 of file baseplotwidget.h.

Referenced by keyPressEvent(), keyReleaseEvent(), and mousePseudoButtonKeyReleaseEvent().

◆ m_mouseMoveHandlerSkipAmount

int pappso::BasePlotWidget::m_mouseMoveHandlerSkipAmount = 10

protected

How many mouse move events must be skipped *‍/.

when the data are so massive that the graph panning becomes sluggish. By default, the value is 10 events to be skipped before accounting one. The "fat data" mouse movement handler mechanism is actuated by using a keyboard key combination. There is no automatic shift between normal processing and "fat data" processing.

Definition at line 333 of file baseplotwidget.h.

Referenced by mouseMoveHandlerLeftButtonDraggingCursor().

◆ m_mouseMoveHandlerSkipCount

int pappso::BasePlotWidget::m_mouseMoveHandlerSkipCount = 0

protected

Counter to handle the "fat data" mouse move event handling.

See also: m_mouseMoveHandlerSkipAmount.

Definition at line 341 of file baseplotwidget.h.

Referenced by mouseMoveHandlerLeftButtonDraggingCursor(), and mouseReleaseHandler().

◆ m_name

QString pappso::BasePlotWidget::m_name = "NOT_SET"

protected

Name of the plot widget.

Definition at line 262 of file baseplotwidget.h.

◆ m_pen

QPen pappso::BasePlotWidget::m_pen

protected

Pen used to draw the graph and textual elements in the plot widget.

Definition at line 357 of file baseplotwidget.h.

Referenced by BasePlotWidget(), BasePlotWidget(), createAllAncillaryItems(), getPen(), pappso::BaseTracePlotWidget::setGraphData(), and setPen().

◆ m_rightMousePseudoButtonKey

int pappso::BasePlotWidget::m_rightMousePseudoButtonKey = Qt::Key_Greater

protected

Definition at line 276 of file baseplotwidget.h.

Referenced by keyPressEvent(), keyReleaseEvent(), and mousePseudoButtonKeyReleaseEvent().

◆ m_shouldTracersBeVisible

bool pappso::BasePlotWidget::m_shouldTracersBeVisible = true

protected

Tells if the tracers should be visible.

Definition at line 292 of file baseplotwidget.h.

Referenced by hideTracers(), keyReleaseEvent(), mouseMoveHandlerDraggingCursor(), mouseMoveHandlerNotDraggingCursor(), mousePressHandler(), and showTracers().

◆ m_unfocusedBrush

QBrush pappso::BasePlotWidget::m_unfocusedBrush = QBrush(m_unfocusedColor)

protected

Color used for the background of unfocused plot.

Definition at line 349 of file baseplotwidget.h.

Referenced by redrawPlotBackground().

◆ m_unfocusedColor

QColor pappso::BasePlotWidget::m_unfocusedColor = QColor("lightgray")

protected

Color used for the background of unfocused plot.

Definition at line 347 of file baseplotwidget.h.

◆ m_xAxisRangeHistory

std::vector<QCPRange *> pappso::BasePlotWidget::m_xAxisRangeHistory

protected

List of x axis ranges occurring during the panning zooming actions.

Definition at line 318 of file baseplotwidget.h.

Referenced by ~BasePlotWidget(), resetAxesRangeHistory(), restoreAxesRangeHistory(), and updateAxesRangeHistory().

◆ m_yAxisRangeHistory

std::vector<QCPRange *> pappso::BasePlotWidget::m_yAxisRangeHistory

protected

List of y axis ranges occurring during the panning zooming actions.

Definition at line 321 of file baseplotwidget.h.

Referenced by ~BasePlotWidget(), resetAxesRangeHistory(), restoreAxesRangeHistory(), and updateAxesRangeHistory().

◆ mp_hPosTracerItem

QCPItemLine* pappso::BasePlotWidget::mp_hPosTracerItem = nullptr

protected

Horizontal position tracer.

Definition at line 295 of file baseplotwidget.h.

Referenced by createAllAncillaryItems(), drawXScopeSpanFeatures(), drawYScopeSpanFeatures(), hideTracers(), mouseMoveHandlerDraggingCursor(), mouseMoveHandlerLeftButtonDraggingCursor(), mouseMoveHandlerNotDraggingCursor(), mouseMoveHandlerRightButtonDraggingCursor(), mouseReleaseHandler(), restoreAxesRangeHistory(), and showTracers().

◆ mp_selectionRectangeLine1

QCPItemLine* pappso::BasePlotWidget::mp_selectionRectangeLine1 = nullptr

protected

Rectangle defining the borders of zoomed-in/out data.

Definition at line 282 of file baseplotwidget.h.

Referenced by createAllAncillaryItems(), hideSelectionRectangle(), isSelectionRectangleVisible(), updateIntegrationScope(), updateIntegrationScopeHorizontalRhomb(), updateIntegrationScopeRect(), updateIntegrationScopeVerticalRhomb(), and whatIsVisibleOfTheSelectionRectangle().

◆ mp_selectionRectangeLine2

QCPItemLine* pappso::BasePlotWidget::mp_selectionRectangeLine2 = nullptr

protected

Definition at line 283 of file baseplotwidget.h.

Referenced by createAllAncillaryItems(), hideSelectionRectangle(), isSelectionRectangleVisible(), updateIntegrationScope(), updateIntegrationScopeHorizontalRhomb(), updateIntegrationScopeRect(), updateIntegrationScopeVerticalRhomb(), and whatIsVisibleOfTheSelectionRectangle().

◆ mp_selectionRectangeLine3

QCPItemLine* pappso::BasePlotWidget::mp_selectionRectangeLine3 = nullptr

protected

Definition at line 284 of file baseplotwidget.h.

Referenced by createAllAncillaryItems(), hideSelectionRectangle(), isSelectionRectangleVisible(), updateIntegrationScope(), updateIntegrationScopeHorizontalRhomb(), updateIntegrationScopeRect(), updateIntegrationScopeVerticalRhomb(), and whatIsVisibleOfTheSelectionRectangle().

◆ mp_selectionRectangeLine4

QCPItemLine* pappso::BasePlotWidget::mp_selectionRectangeLine4 = nullptr

protected

Definition at line 285 of file baseplotwidget.h.

Referenced by createAllAncillaryItems(), hideSelectionRectangle(), isSelectionRectangleVisible(), updateIntegrationScope(), updateIntegrationScopeHorizontalRhomb(), updateIntegrationScopeRect(), updateIntegrationScopeVerticalRhomb(), and whatIsVisibleOfTheSelectionRectangle().

◆ mp_vEndTracerItem

QCPItemLine* pappso::BasePlotWidget::mp_vEndTracerItem = nullptr

protected

Vertical selection end tracer (typically in red).

Definition at line 304 of file baseplotwidget.h.

Referenced by createAllAncillaryItems(), hideTracers(), mouseMoveHandlerDraggingCursor(), mouseMoveHandlerLeftButtonDraggingCursor(), mouseMoveHandlerNotDraggingCursor(), mouseMoveHandlerRightButtonDraggingCursor(), mouseReleaseHandler(), mouseReleaseHandlerRightButton(), restoreAxesRangeHistory(), and showTracers().

◆ mp_vPosTracerItem

QCPItemLine* pappso::BasePlotWidget::mp_vPosTracerItem = nullptr

protected

Vertical position tracer.

Definition at line 298 of file baseplotwidget.h.

Referenced by createAllAncillaryItems(), drawXScopeSpanFeatures(), drawYScopeSpanFeatures(), hideTracers(), mouseMoveHandlerDraggingCursor(), mouseMoveHandlerLeftButtonDraggingCursor(), mouseMoveHandlerNotDraggingCursor(), mouseMoveHandlerRightButtonDraggingCursor(), mouseReleaseHandler(), restoreAxesRangeHistory(), and showTracers().

◆ mp_vStartTracerItem

QCPItemLine* pappso::BasePlotWidget::mp_vStartTracerItem = nullptr

protected

Vertical selection start tracer (typically in green).

Definition at line 301 of file baseplotwidget.h.

Referenced by createAllAncillaryItems(), hideTracers(), mouseMoveHandlerDraggingCursor(), mouseMoveHandlerLeftButtonDraggingCursor(), mouseMoveHandlerRightButtonDraggingCursor(), mousePressHandler(), restoreAxesRangeHistory(), and showTracers().

◆ mp_xDeltaTextItem

QCPItemText* pappso::BasePlotWidget::mp_xDeltaTextItem = nullptr

protected

Text describing the x-axis delta value during a drag operation.

Definition at line 288 of file baseplotwidget.h.

Referenced by createAllAncillaryItems(), drawSelectionRectangleAndPrepareZoom(), drawXScopeSpanFeatures(), hideAllPlotItems(), mouseReleaseHandler(), and mouseReleaseHandlerRightButton().

◆ mp_yDeltaTextItem

QCPItemText* pappso::BasePlotWidget::mp_yDeltaTextItem = nullptr

protected

Definition at line 289 of file baseplotwidget.h.

Referenced by createAllAncillaryItems(), drawSelectionRectangleAndPrepareZoom(), drawYScopeSpanFeatures(), hideAllPlotItems(), mouseReleaseHandler(), and mouseReleaseHandlerRightButton().

The documentation for this class was generated from the following files:

pappsomspp/gui/plotwidget/baseplotwidget.h
pappsomspp/gui/plotwidget/baseplotwidget.cpp

Signals

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ BasePlotWidget() [1/2]

◆ BasePlotWidget() [2/2]

◆ ~BasePlotWidget()

Member Function Documentation

◆ allLayerNamesToString()

◆ axisDoubleClickHandler()

◆ axisPan()

◆ axisReframe()

◆ axisRescale()

◆ axisZoom()

◆ calculateDragDeltas()

◆ createAllAncillaryItems()

◆ directionKeyPressEvent()

◆ directionKeyReleaseEvent()

◆ dragDirection()

◆ drawSelectionRectangleAndPrepareZoom()

◆ drawXScopeSpanFeatures()

◆ drawYScopeSpanFeatures()

◆ getContext()

◆ getInnermostRangeX()

◆ getInnermostRangeY()

◆ getOutermostRangeX()

◆ getOutermostRangeY()

◆ getPen()

◆ getPlottingColor() [1/2]

◆ getPlottingColor() [2/2]

◆ getRange()

◆ getRangeX()

◆ getRangeY()

◆ hideAllPlotItems()

◆ hideSelectionRectangle()

◆ hideTracers()

◆ horizontalGetGraphCoordNewPointCountPixels()

◆ horizontalMoveMouseCursorCountPixels()

◆ integrationRequestedSignal

◆ isClickOntoXAxis()

◆ isClickOntoYAxis()

◆ isSelectionRectangleVisible()

◆ isVerticalDisplacementAboveThreshold()

◆ keyPressEvent()

◆ keyPressEventSignal

◆ keyReleaseEvent()

◆ keyReleaseEventSignal

◆ lastCursorHoveredPointSignal

◆ layerableLayerIndex()

◆ layerableLayerName()

◆ mouseMoveHandler()

◆ mouseMoveHandlerDraggingCursor()

◆ mouseMoveHandlerLeftButtonDraggingCursor()

◆ mouseMoveHandlerNotDraggingCursor()

◆ mouseMoveHandlerRightButtonDraggingCursor()

◆ mousePressEventSignal

◆ mousePressHandler()

◆ mousePseudoButtonKeyPressEvent()

◆ mousePseudoButtonKeyReleaseEvent()

◆ mouseReleaseEventSignal

◆ mouseReleaseHandler()

◆ mouseReleaseHandlerLeftButton()

◆ mouseReleaseHandlerRightButton()

◆ mouseWheelEventSignal

◆ mouseWheelHandler()

◆ moveMouseCursorGraphCoordToGlobal()

◆ moveMouseCursorPixelCoordToGlobal()

◆ plotRangesChangedSignal

◆ plottableDestructionRequestedSignal

◆ plottableSelectionChangedSignal

◆ redrawPlotBackground()

◆ replotWithAxesRanges()

◆ replotWithAxisRangeX()

◆ replotWithAxisRangeY()

◆ resetAxesRangeHistory()

◆ resetSelectionRectangle()

◆ restoreAxesRangeHistory()

◆ restorePreviousAxesRangeHistory()
